SKU: 3311A-2RS1-SKF

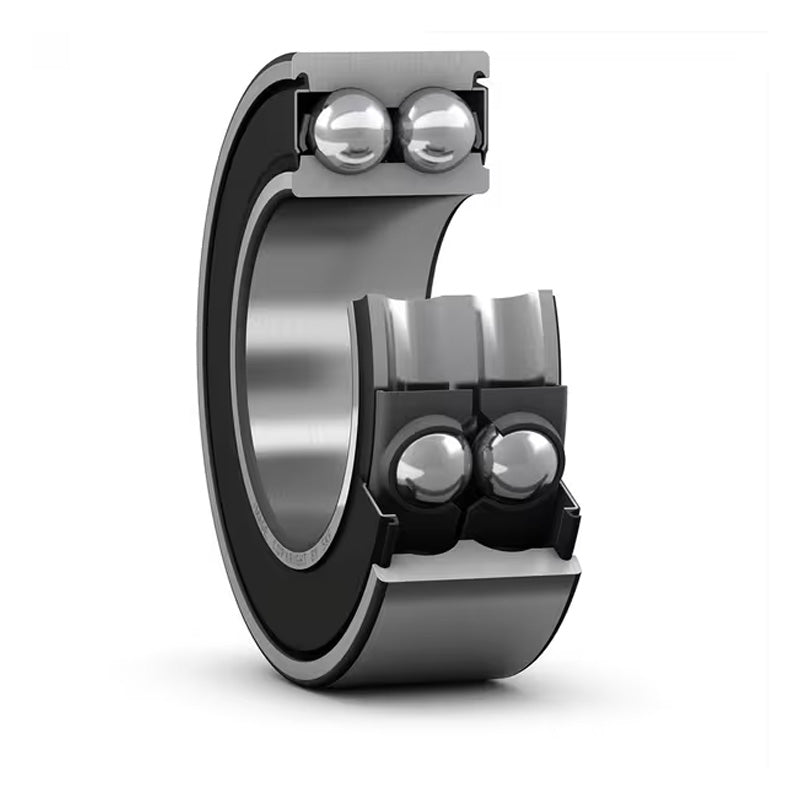

SKF 3311A2RS1 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 55x120x49.2mm

Name: SKF 3311A2RS1 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 55x120x49.2mm
Brand: SKF
SKU: 3311A-2RS1-SKF
Availability: OutOfStock

Equivalent to: 5311

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Brand / Quality:: SKF - High Quality
Inside Diameter:: 55mm
Outside Diameter:: 120mm
Width:: 49.2mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	55mm
D	120mm
B	49.2mm
Dynamic load Cr	112 kN
Static load Cor	81.5 kN
Fatigue load limit Pu	3.45 kN
Max speed	3800 rpm
Weight	2.65 kg
d1	68.4mm
D1	109mm
r1r2 min	2mm
a	72mm
da min	66mm
da max	68mm
Da max	109mm
ra max	2mm
