SKU: 3303A-2RS1TN9/C3MT33-SKF

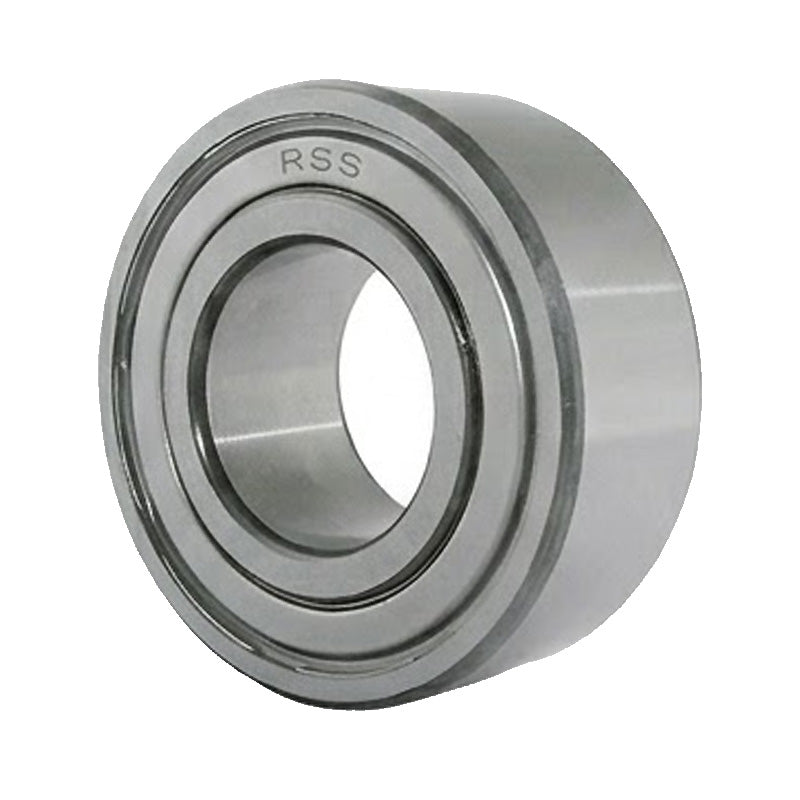

SKF 3303A2RS1TN9C3MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 17x47x22.2mm

Name: SKF 3303A2RS1TN9C3MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 17x47x22.2mm
Brand: SKF
SKU: 3303A-2RS1TN9/C3MT33-SKF
Availability: OutOfStock

Equivalent to: 5303

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Brand / Quality:: SKF - High Quality
Inside Diameter:: 17mm
Outside Diameter:: 47mm
Width:: 22.2mm
Seals / Shields:: None
Clearance:: C3

Technical

d	17mm
D	47mm
B	22.2mm
Dynamic load Cr	21.6 kN
Static load Cor	12.7 kN
Fatigue load limit Pu	0.54 kN
Max speed	11000 rpm
Weight	0.18 kg
d1	25.7mm
D1	40.2mm
r1r2 min	1mm
a	28mm
da min	22.6mm
da max	25.5mm
Da max	41.4mm
ra max	1mm
