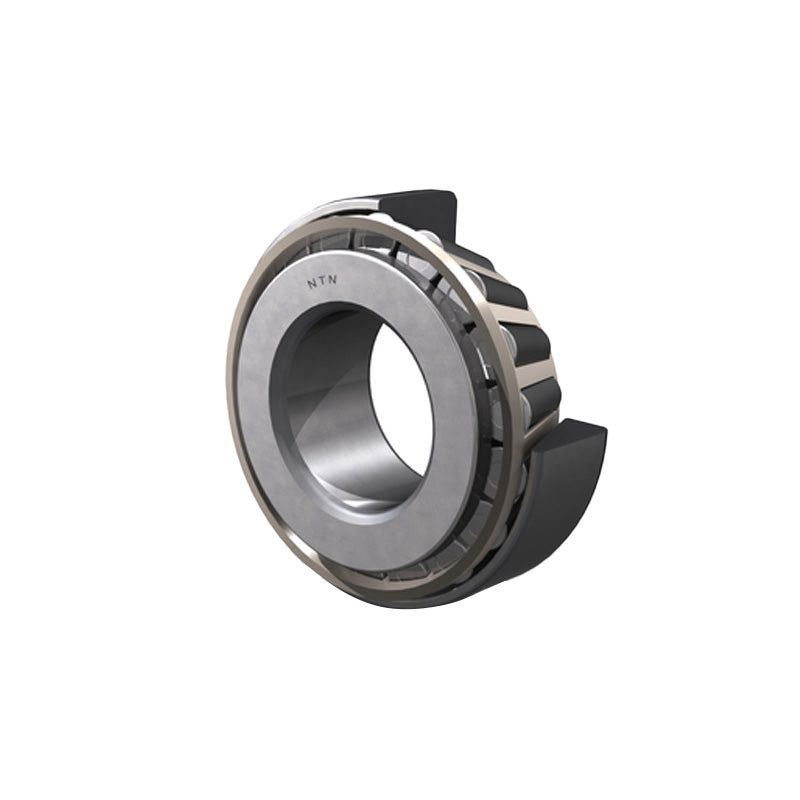

• NTN 32309U Tapered Roller Bearing Cup and Cone Set 45x100x38.25mm
1 1

SKU: 32309U-NTN

NTN 32309U Tapered Roller Bearing Cup and Cone Set 45x100x38.25mm

NTN 32309U Tapered Roller Bearing Cup and Cone Set 45x100x38.25mm
€50,95 ex VAT
€50,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €38,15
5+ €36,01
10+ €35,58
25+ €35,15
49+ €34,72
74+ €34,30
99+ €32,15
199+ €31,72
249+ €31,30
499+ €30,87
999+ €30,01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FMYNRUNSLU
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
38.25mm
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 45mm
D 100mm
T 38.25mm
B 36mm
C 30mm
r<sub>s</sub> min 2mm
r<sub>ls</sub> min 1.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 170kN
Static load C<sub>or</sub> 191kN
Fatigue Load limit C<sub>u</sub> 23.3kN
Allowable Speed in grease 4000rpm
Allowable Speed in oil 5300rpm
--- Abutment dimensions
ISO Dimension series 2FD
d<sub>a</sub> min 55mm
d<sub>b</sub> max 56.5mm
D<sub>a</sub> max 91.5mm
D<sub>a</sub> min 80.5mm
D<sub>b</sub> min 93.5mm
S<sub>a</sub> min 3mm
S<sub>b</sub> min 8mm
r<sub>as</sub> max 2mm
r<sub>1as</sub> max 1.5mm
Load center a 25.5mm
Constant e 0.35mm
Y<sub>2</sub> 1.74mm
Y<sub>0</sub> 0.96mm
Weight 1.45kg
