SKU: 32306A-SNR

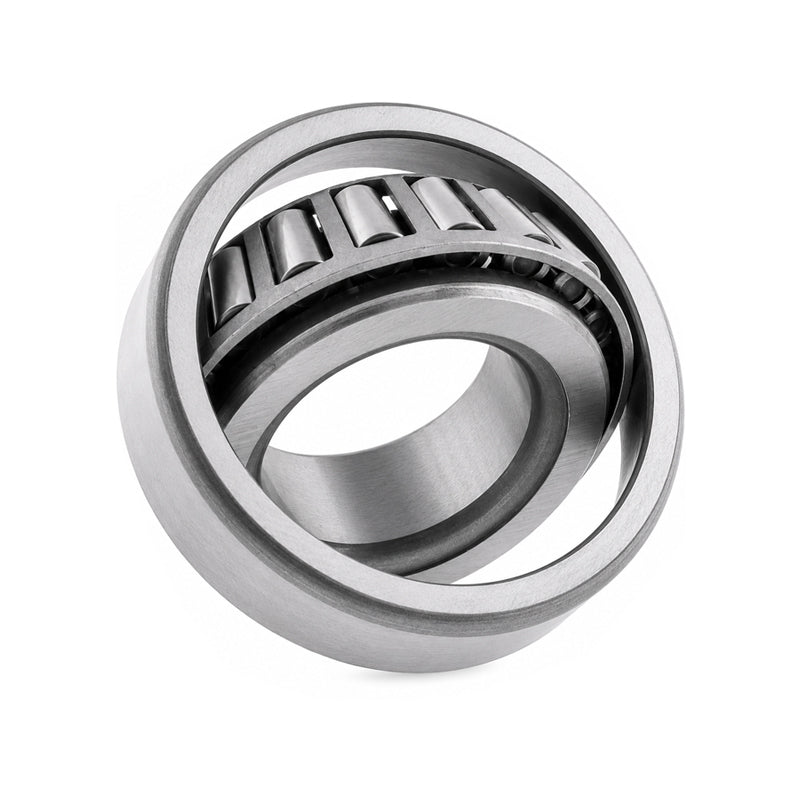

SNR 32306A Tapered Roller Bearing Cup and Cone Set 30x72x28.75mm
SNR 32306A Tapered Roller Bearing Cup and Cone Set 30x72x28.75mm
Regular price
€27,95
ex VAT
Regular price
Sale price
€27,95
ex VAT
In stock
Price Break
3+
€20,97
5+
€19,79
10+
€19,56
25+
€19,32
49+
€19,09
74+
€18,85
99+
€17,67
199+
€17,44
249+
€17,20
499+
€16,96
999+
€16,49
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SNR Metric Taper Roller Bearings: Designed to carry heavy radial loads and single direction thrust loads. Supplied as a two-part set consisting of the cone inner part where the rollers and cage are located (fits on the shaft) and the outer cup part (fits in the housing). SNR are a world-renowned leader in the bearing manufacturing sector and their tapered roller bearings are no exception.
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 28.75mm
- Style:
- Taper Roller Bearing
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 72mm |
| T | 28.75mm |
| B | 27mm |
| C | 23mm |
| r<sub>s</sub> min | 1.5mm |
| r<sub>ls</sub> min | 1.5mm |
| --- | Speeds and loads |
| Dynamic load C<sub>r</sub> | 85.8kN |
| Static load C<sub>or</sub> | 96.9kN |
| Fatigue Load limit C<sub>u</sub> | 11.8kN |
| Allowable Speed in grease | 5700rpm |
| Allowable Speed in oil | 7600rpm |
| --- | Abutment dimensions |
| ISO Dimension series | 2FD |
| d<sub>a</sub> min | 38.5mm |
| d<sub>b</sub> max | 39mm |
| D<sub>a</sub> max | 63.5mm |
| D<sub>a</sub> min | 59mm |
| D<sub>b</sub> min | 66mm |
| S<sub>a</sub> min | 3mm |
| S<sub>b</sub> min | 5.5mm |
| r<sub>as</sub> max | 1.5mm |
| r<sub>1as</sub> max | 1.5mm |
| Load center a | 23mm |
| Constant e | 0.32mm |
| Y<sub>2</sub> | 1.9mm |
| Y<sub>0</sub> | 1.05mm |
| Weight | 0.565kg |
