SKU: 322XL-025-161-CONTINENTAL

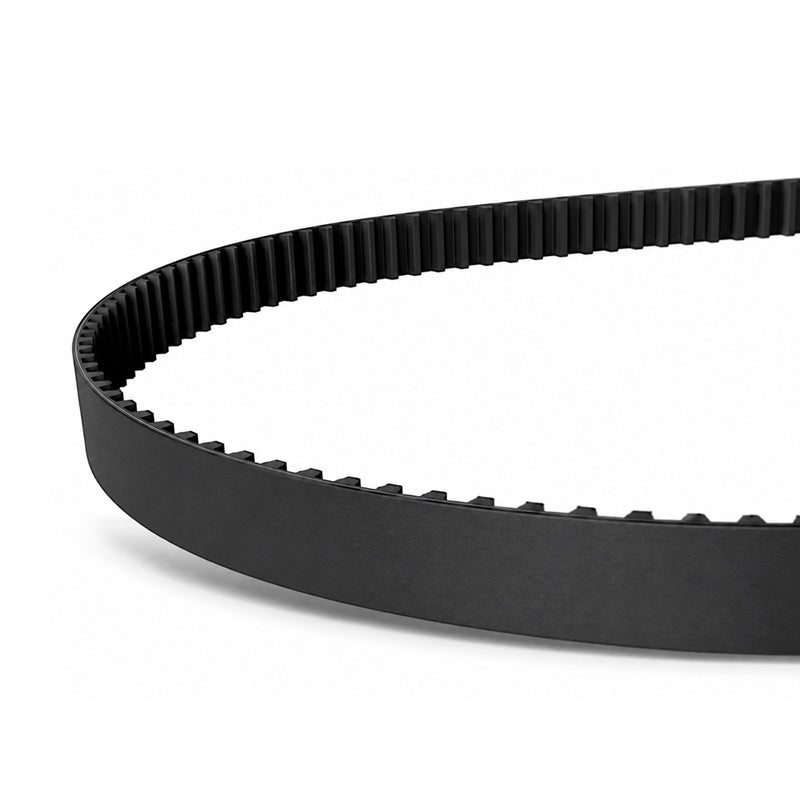

322XL025 Continental Synchronous Toothed Belt 0.25 inch Wide 32.2 inch Length 161 Teeth
322XL025 Continental Synchronous Toothed Belt 0.25 inch Wide 32.2 inch Length 161 Teeth
Out of stock
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Continental - High Quality
- Belt Width Approx:
- 6.35mm = 1/4 inch
- Belt Depth Approx:
- 2.3mm
- Belt Length Approx:
- 817.88mm = 32.2 inch
- Number of Teeth:
- 161
Technical
Technical
| Belt width | 0.25 inch = 6.35mm |
|---|---|
| Pitch length | 32.2 inch = 817.88mm |
| Number of teeth | 161 |
| Tooth pitch t | 0.2 inch |
| Flank angle f | 50 degrees |
| Tooth height h<sub>t</sub> | 0.05 inch |
| Pitch zone u | 0.01 inch |
