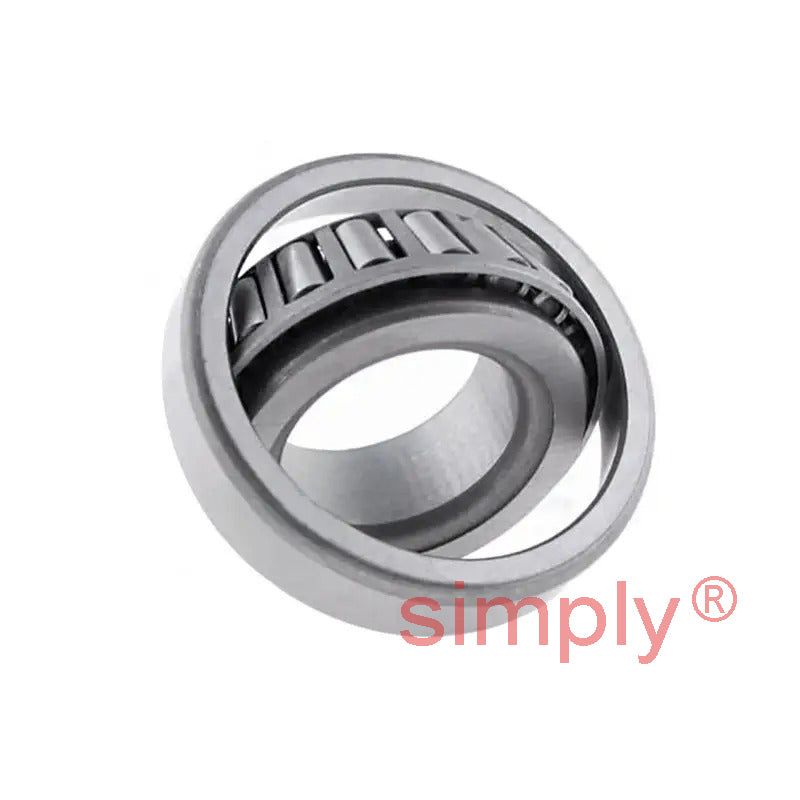

• Timken 32232 Metric Taper Roller Bearing 160x290x84mm
1 1

SKU: 32232-TIM

Timken 32232 Metric Taper Roller Bearing 160x290x84mm

Timken 32232 Metric Taper Roller Bearing 160x290x84mm
€2.755,95 ex VAT
€2.755,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €2.098,21
20+ €1.980,33
30+ €1.956,75
40+ €1.933,18
50+ €1.909,60
75+ €1.886,03
100+ €1.768,15
200+ €1.744,58
250+ €1.721,00
500+ €1.697,43
1000+ €1.650,28
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
Timken - High Quality
Inside Diameter:
160mm
Outside Diameter:
290mm
Width:
84mm
Technical
d 160mm
D 290mm
T 84mm
Dynamic load 880 kN
Static load 1400 kN
Fatigue load limit Pu 132 kN
Reference speed 1600 rpm
Limiting speed 2200 rpm
Mass 25.5 kg
d1 221mm
B 80mm
C 67mm
r1r2 min 4mm
r3r4 min 3mm
a 70mm
da max 183mm
db min 176mm
Da min 242mm
Da max 275mm
Db min 274mm
Ca min 10mm
Cb min 17mm
ra max 3mm
rb max 2.5mm
e 0.43
Y 1.4
Y0 0.8
