SKU: 3211ATN9/C3-SKF

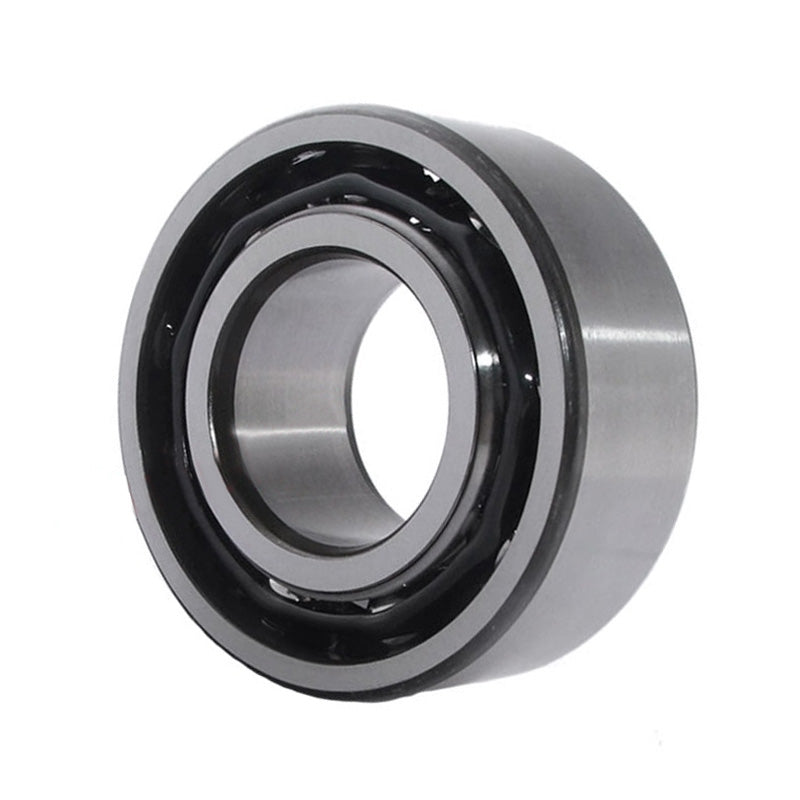

SKF 3211ATN9C3 Double Row Angular Contact Ball Bearing with Polyamide Cage 55x100x33.3mm
SKF 3211ATN9C3 Double Row Angular Contact Ball Bearing with Polyamide Cage 55x100x33.3mm
Equivalent to: 5211
Out of stock
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 33.3mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 33.3mm |
| Dynamic load Cr | 60 kN |
| Static load Cor | 47.5 kN |
| Fatigue load limit Pu | 2 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 6300 rpm |
| Weight | 1.05 kg |
| d1 | 63.2mm |
| D1 | 92.3mm |
| r1r2 min | 1.5mm |
| a | 57mm |
| da min | 63mm |
| Da max | 91mm |
| ra max | 1.5mm |
