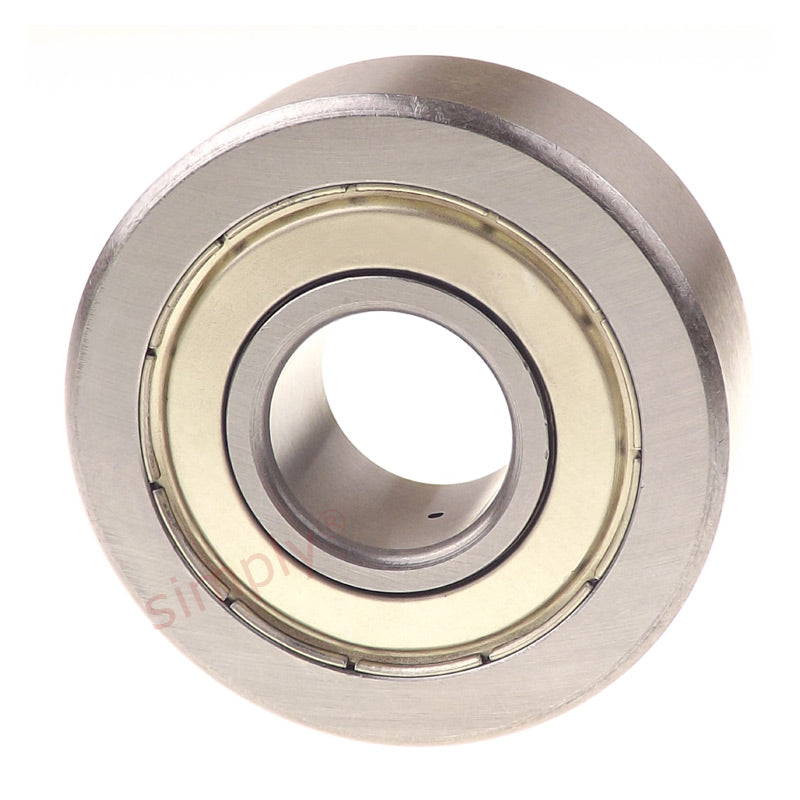

• SKF 305800C2Z Double Row Cam Roller Bearing with Crowned Running Surface 10x32x14mm
1 1

SKU: 305800C-2Z-SKF

SKF 305800C2Z Double Row Cam Roller Bearing with Crowned Running Surface 10x32x14mm

SKF 305800C2Z Double Row Cam Roller Bearing with Crowned Running Surface 10x32x14mm
€55,95 ex VAT
€55,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €41,91
19+ €39,55
29+ €39,08
39+ €38,61
49+ €38,14
74+ €37,67
99+ €35,32
199+ €34,84
249+ €34,37
499+ €33,90
999+ €32,96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Double Row Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for.
Benefits: Tolerate high loads, shock loads, misalignment when running in tracks
Brand / Quality:
SKF - High Quality
Inside Diameter:
10mm
Outside Diameter:
32mm
Width:
14mm
Seals / Shields:
Metal Shielded
Technical
d 10mm
D 32mm
B 14mm
d1 17.7mm
D1 25mm
r1r2 min 0.6mm
a 15mm
Limiting speed 11000 rpm
Mass 0.062 kg
Dynamic load C 7.15 kN
Static load Co 3.8 kN
Fatigue load limit Pu 0.16 kN
Max radial load 4.4 kN
Max static load 6.3 kN
