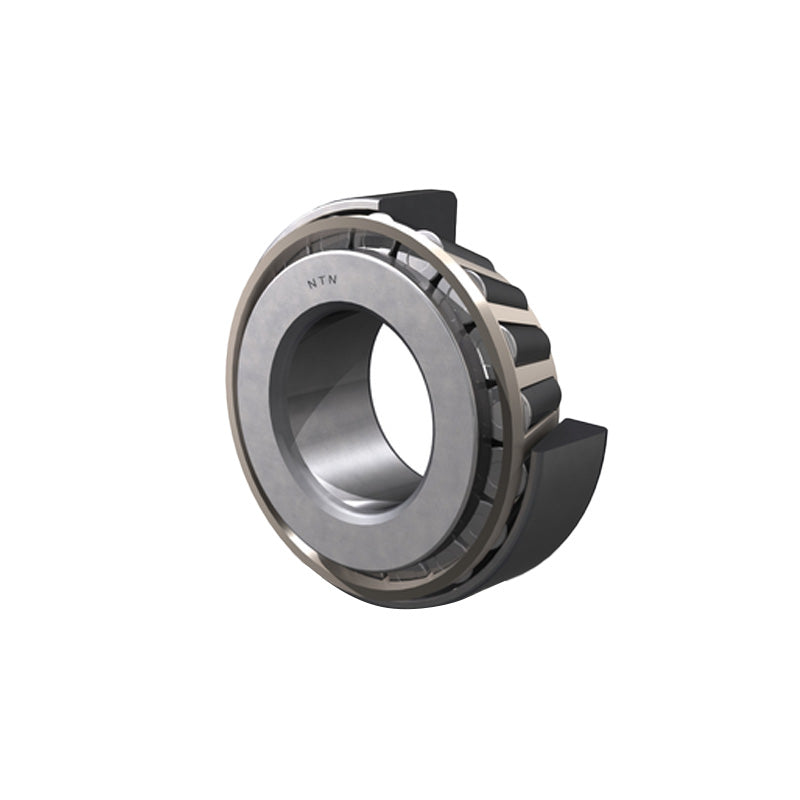

NTN 30232UUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 160x290x52mm

NTN 30232UUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 160x290x52mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 160mm
D 290mm
T 52mm
B 48mm
C 40mm
r<sub>s</sub> min 4mm
r<sub>ls</sub> min 3mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 675kN
Static load C<sub>or</sub> 720kN
Fatigue Load limit C<sub>u</sub> 68.5kN
Allowable Speed in grease 1200rpm
Allowable Speed in oil 1700rpm
--- Abutment dimensions
ISO Dimension series 4GB
d<sub>a</sub> min 178mm
d<sub>b</sub> max 188.5mm
D<sub>a</sub> max 276mm
D<sub>a</sub> min 248mm
D<sub>b</sub> min 271mm
S<sub>a</sub> min 8mm
S<sub>b</sub> min 12mm
r<sub>as</sub> max 3mm
r<sub>1as</sub> max 2.5mm
Load center a 55.5mm
Constant e 0.44mm
Y<sub>2</sub> 1.38mm
Y<sub>0</sub> 0.76mm
Weight 13.4kg
