SKU: 30208RJ2/Q-SKF

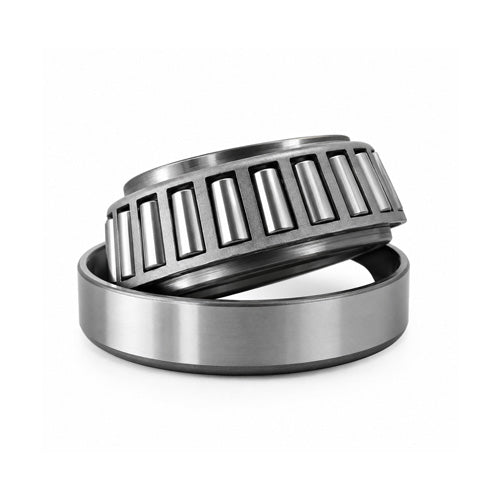

SKF 30208RJ2Q Metric Taper Roller Bearing with Flanged Outer Ring 40x80x19.75mm
SKF 30208RJ2Q Metric Taper Roller Bearing with Flanged Outer Ring 40x80x19.75mm
Out of stock
Share this product
Description
Description
|
SKF Taper Roller Bearings with Flanged Outer Ring: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 19.75mm
- Seals / Shields:
- None
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| T | 19.75mm |
| Dynamic load | 61.6 kN |
| Static load | 68 kN |
| Fatigue load limit Pu | 7.65 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.42 kg |
| d1 | 57.5mm |
| D1 | 85mm |
| B | 18mm |
| C | 16mm |
| C1 | 4mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| a | 16mm |
| da max | 49mm |
| db min | 47mm |
| ra max | 1mm |
| Calculation Factor e | 0.37 |
| Calculation Factor Y | 1.6 |
| Calculation Factor Y0 | 0.9 |
