SKU: 27687/27620B-TIM
Timken 27687/27620B TSF Single-Row Taper Roller Bearing 3.25x4.9375x1 inch
Timken 27687/27620B TSF Single-Row Taper Roller Bearing 3.25x4.9375x1 inch
Regular price
€241,95
ex VAT
Regular price
Sale price
€241,95
ex VAT
In stock
Price Break
10+
€183,48
20+
€173,17
30+
€171,11
40+
€169,05
50+
€166,99
75+
€164,92
100+
€154,62
200+
€152,56
250+
€150,49
500+
€148,43
1000+
€144,31
Quantity
Couldn't load pickup availability
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Outside Diameter:
- 125.41mm = 4.937 (4-15/16) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical

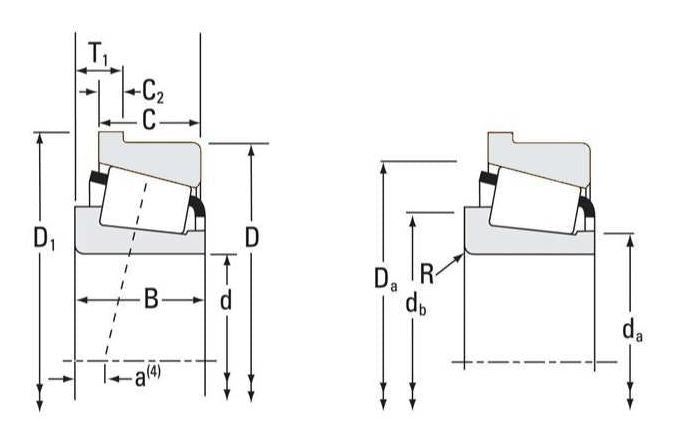

| d | 82.55mm = 3.25 inch |
|---|---|
| D | 125.412mm = 4.9375 inch |
| T1 | 10.317mm = 0.4062 inch |
| Dynamic (1) C1 | 109000N |
| Factors (5) e | 0.42 |
| Factors (5) Y | 1.44 |
| Dynamic (2) C90 | 28100N |
| Dynamic (2) Ca90 | 20000N |
| Factors (5) K | 1.4 |
| Static Co | 178000N |
| Bearing B | 25.4mm = 1 inch |
| Bearing C | 19.845mm = 0.7813 inch |
| Bearing a(3) | 0.5mm = 0.02 inch |
| Bearing D1 | 130.076mm = 5.1211 inch |
| Bearing C2 | 4.762mm = 0.1875 inch |
| Shaft max shaft fillet radius R(4) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter da | 89mm = 3.5 inch |
| Shaft backing shoulder diameter db | 96mm = 3.78 inch |
| Housing backing shoulder diameter Da | 123mm = 4.84 inch |
| G1 | 98.2 |
| G2 | 41.8 |
| Cg | 0.1198 |
