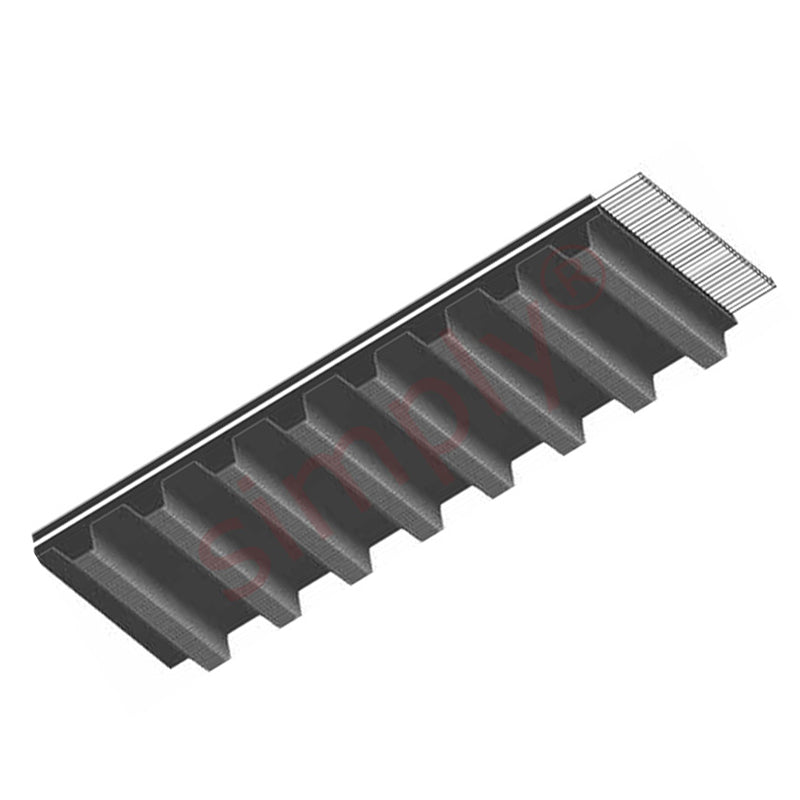

25T10/980DL ContiTech Synchroflex Toothed Belt 25mm Wide 10mm Pitch 98 Teeth
- Regular price
- €78,95 ex VAT
- Sale price
- €78,95
- Regular price
-
Quantity Price Breaks
25T10/980DL ContiTech Synchroflex Toothed Belt 25mm Wide 10mm Pitch 98 Teeth
- Regular price
- €78,95 ex VAT
- Sale price
- €78,95
- Regular price
-
Description
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.
Technical
| No Teeth | = | 98 |
| Width | = | 25mm |
| Tooth Pitch t | = | 10mm |
| Belt Length | = | 980mm |
| Belt Thickness h< | = | sub> |
| s< | = | /sub> |
| = | 7mm | |
| Tooth Height h< | = | sub> |
| t< | = | /sub> |
| = | 2.5mm | |
| Flank Angle | = | 40 deg |
| Tension member loadings | = | 2000 Fadm(N) |
| Belt weight | = | 0.143kg/m |
