SKU: 24188-B-K30+AH24188-FAG

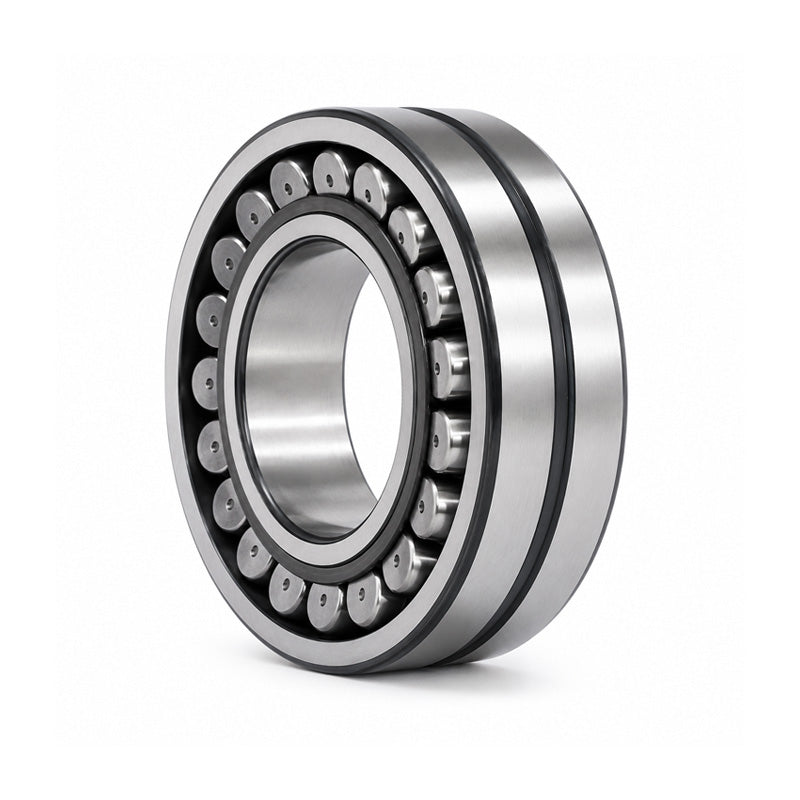

FAG 24188BK30 Spherical Roller Bearing with AH24188 Withdrawal Sleeve 420x720x280mm
FAG 24188BK30 Spherical Roller Bearing with AH24188 Withdrawal Sleeve 420x720x280mm
Out of stock
Description
Description
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 420mm
- Outside Diameter:
- 720mm
- Width:
- 280mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1H | 420mm |
|---|---|
| d | 440mm |
| D | 720mm |
| B | 280mm |
| r min | 6mm |
| D1 | 612.4mm |
| ds | 12.5mm |
| ns | 23.5mm |
| a | 22mm |
| b | 30mm |
| Thread d2G | Tr460X5 |
| l | 310mm |
| da min | 466mm |
| Da max | 694mm |
| ra max | 5mm |
| Dynamic load Cr | 6400000 N |
| Static load C0r | 13200000 N |
| e | 0.38 |
| Y1 | 1.76 |
| Y2 | 2.62 |
| Y0 | 1.72 |
| Fatigue load limit Cur | 1020000 N |
| Limiting speed nG | 600 rpm |
| Reference speed nB | 255 rpm |
| Bearing weight | 451 kg |
| Withdrawal sleeve weight | 42.3 kg |
