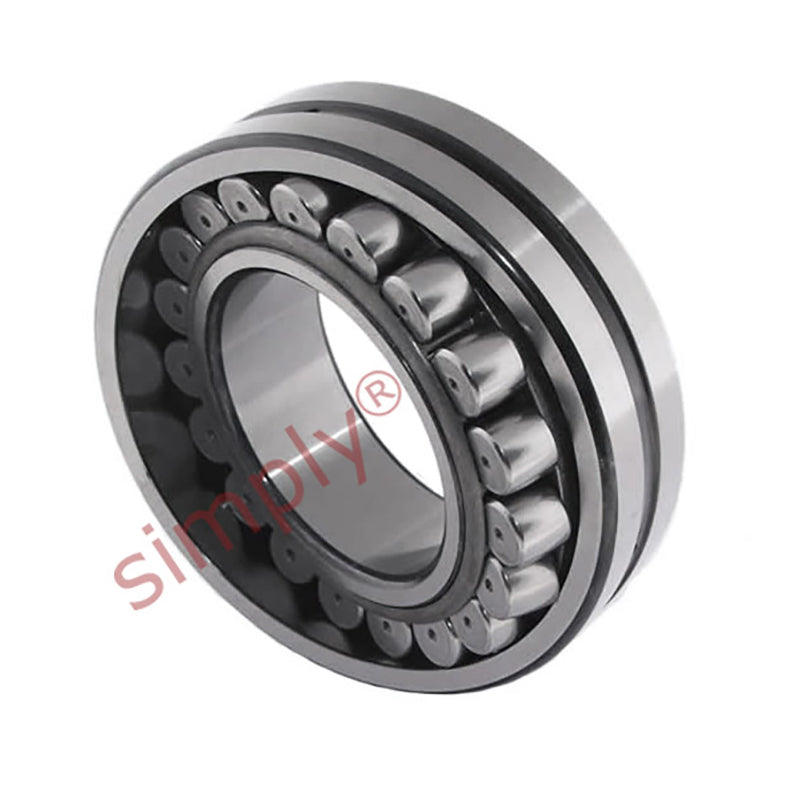

• SKF 23940CCKW33 Spherical Roller Bearing with Taper Bore with Steel Cage 200x280x60mm
1 1

SKU: 23940CCK/W33-SKF

SKF 23940CCKW33 Spherical Roller Bearing with Taper Bore with Steel Cage 200x280x60mm

SKF 23940CCKW33 Spherical Roller Bearing with Taper Bore with Steel Cage 200x280x60mm
€1.483,95 ex VAT
€1.483,95 ex VAT
Sale Sold out

Equivalent to: 23940K

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
200mm
Outside Diameter:
280mm
Width:
60mm
Clearance:
* Standard
Technical
--- Dimensions
d 200mm
D 280mm
B 60mm
D1 258mm
d2 222mm
r1r2 min 2.1mm
b 8.3mm
K 4.5mm
da min 211mm
Da max 269mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 546 kN
Static load Co 1040 kN
Fatigue load limit Pu 93 kN
Reference speed 2000 rpm
Limiting speed 2400 rpm
Weight 11.5 kg
--- Factors
Calculation factor e 0.19
Calculation factor Y1 3.6
Calculation factor Y2 5.3
Calculation factor Y0 3.6
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H3940+sleeve>H3940</a>
