SKU: 23196-K-MB-C3+AHX3196G-FAG

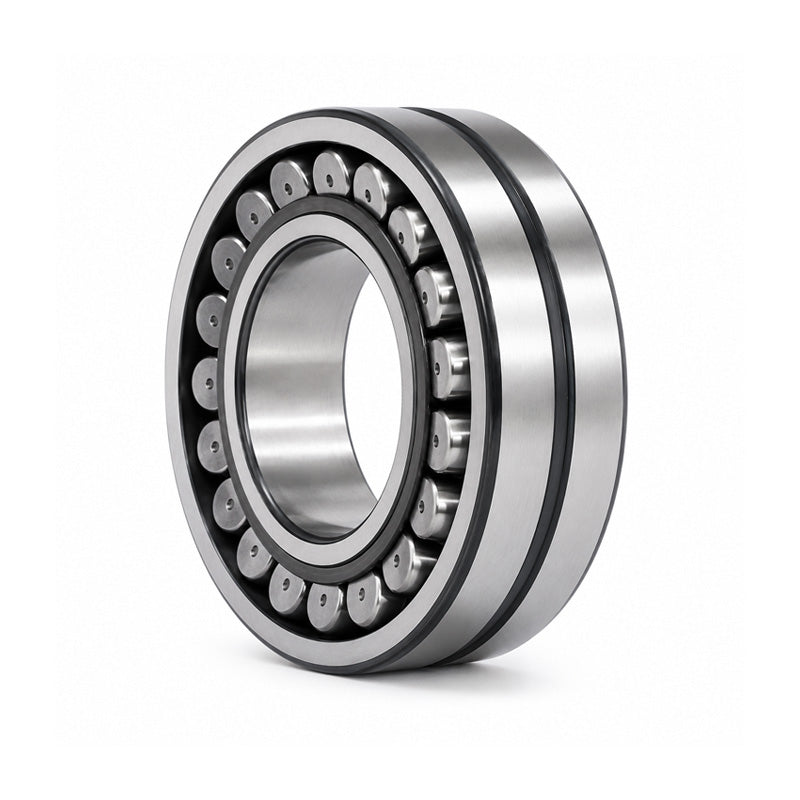

FAG 23196KMBC3 Spherical Roller Bearing with AHX3196G Withdrawal Sleeve 460x790x248mm
FAG 23196KMBC3 Spherical Roller Bearing with AHX3196G Withdrawal Sleeve 460x790x248mm
Out of stock
Description
Description
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 460mm
- Outside Diameter:
- 790mm
- Width:
- 248mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1H | 460mm |
|---|---|
| d | 480mm |
| D | 790mm |
| B | 248mm |
| r min | 7.5mm |
| D1 | 688.3mm |
| ds | 12.5mm |
| ns | 23.5mm |
| a | 12mm |
| b | 45mm |
| Thread d2G | Tr500X5 |
| l | 295mm |
| da min | 512mm |
| Da max | 758mm |
| ra max | 6mm |
| Dynamic load Cr | 6300000 N |
| Static load C0r | 12700000 N |
| e | 0.32 |
| Y1 | 2.12 |
| Y2 | 3.15 |
| Y0 | 2.07 |
| Fatigue load limit Cur | 570000 N |
| Limiting speed nG | 630 rpm |
| Reference speed nB | 370 rpm |
| Bearing weight | 470 kg |
| Withdrawal sleeve weight | 55.5 kg |
