SKU: 2306K/C3-SKF
SKF 2306KC3 Taper Bore Self Aligning Ball Bearing for use with Adaptor Sleeve 30x72x27mm
SKF 2306KC3 Taper Bore Self Aligning Ball Bearing for use with Adaptor Sleeve 30x72x27mm
Regular price
€72,95
ex VAT
Regular price
Sale price
€72,95
ex VAT
Equivalent to: 2306EKC3
In stock
Price Break
10+
€54,97
19+
€51,88
29+
€51,26
39+
€50,64
49+
€50,03
74+
€49,41
99+
€46,32
199+
€45,70
249+
€45,09
499+
€44,47
999+
€43,23
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. Benefits: Tolerates misalignment, cool running, self centering |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- C3

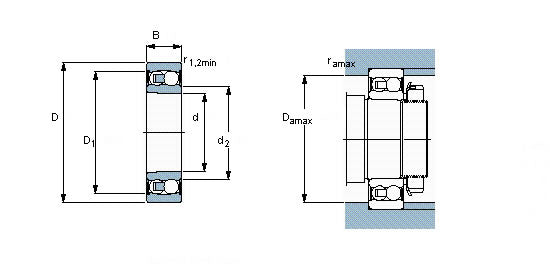

Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 27mm |
| Dynamic load C | 31.2 kN |
| Static load Co | 8.8 kN |
| Fatigue load limit Pu | 0.45 kN |
| Reference speed | 18000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.61 kg |
| d3 | 45mm |
| D1 | 60.9mm |
| B1 | 38mm |
| B2 | 8mm |
| r1r2 min | 1.1mm |
| da max | 41mm |
| db min | 35mm |
| Da max | 65mm |
| Ba min | 5mm |
| ra max | 1mm |
| Calculation factor e | 0.44 |
| Calculation factor Y0 | 1.4 |
| Calculation factor Y1 | 1.4 |
| Calculation factor Y2 | 2.2 |
