SKU: 23030-E1A-K-Mu-FAG

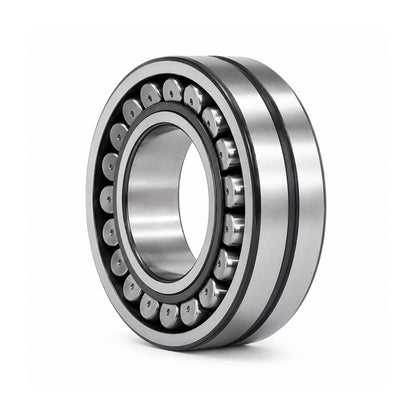

FAG 23030E1AKM X-life Spherical Roller Bearing with AHX3030 Withdrawal Sleeve 145x225x56mm
FAG 23030E1AKM X-life Spherical Roller Bearing with AHX3030 Withdrawal Sleeve 145x225x56mm
Regular price
€874,95
ex VAT
Regular price
Sale price
€874,95
ex VAT
In stock
Price Break
3+
€664,57
4+
€627,24
9+
€619,77
19+
€612,30
29+
€604,84
39+
€597,37
49+
€560,03
59+
€552,57
249+
€545,10
499+
€537,63
999+
€522,70
Quantity
Couldn't load pickup availability
Description
Description
SPHERWITHD_DESC
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 145mm
- Outside Diameter:
- 225mm
- Width:
- 56mm
- Seals / Shields:
- None
- Clearance:
- * Standard

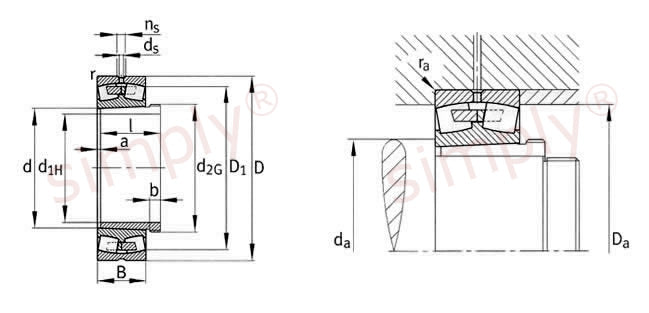

Technical
Technical
| d1H | 145mm |
|---|---|
| d | 150mm |
| D | 225mm |
| B | 56mm |
| r min | 2.1mm |
| D1 | 206.3mm |
| ds | 4.8mm |
| ns | 9.5mm |
| a | 5mm |
| b | 15mm |
| Thread d2G | M160X3 |
| l | 72mm |
| da min | 160.2mm |
| Da max | 214.8mm |
| ra max | 2.1mm |
| Dynamic load Cr | 630000 N |
| Static load C0r | 880000 N |
| e | 0.22 |
| Y1 | 3.1 |
| Y2 | 4.62 |
| Y0 | 3.03 |
| Fatigue load limit Cur | 85000 N |
| Limiting speed nG | 3400 rpm |
| Reference speed nB | 2210 rpm |
| Bearing weight | 7.33 kg |
| Withdrawal sleeve weight | 1.15 kg |
