SKU: 230/560-B-K-MB-C3+H30/560-FAG

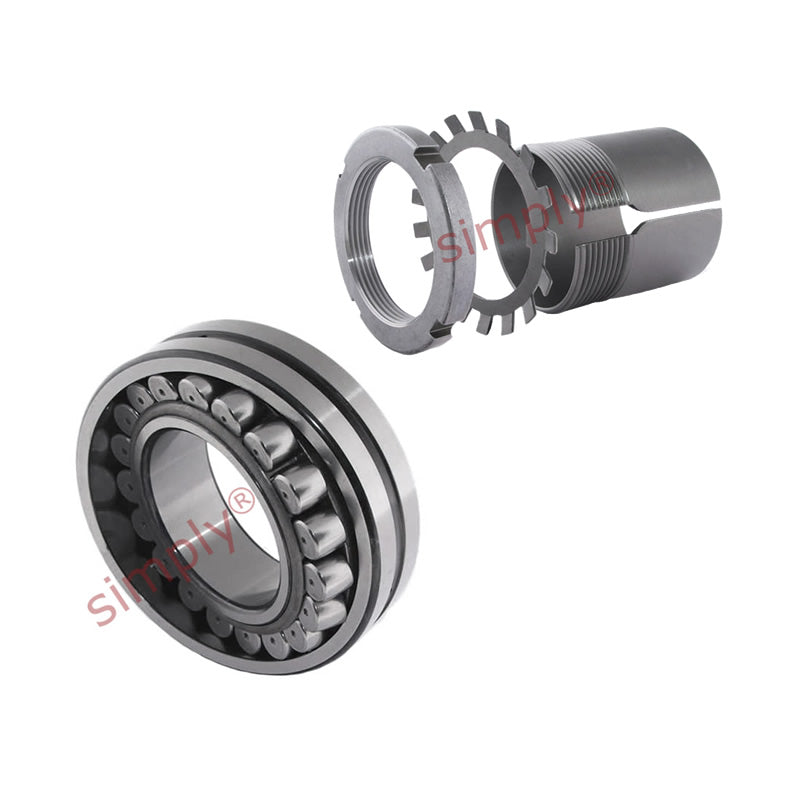

FAG 230/560BKMBC3 Spherical Roller Bearing with H30/560 Adapter Sleeve 530x820x195mm
FAG 230/560BKMBC3 Spherical Roller Bearing with H30/560 Adapter Sleeve 530x820x195mm
Out of stock
Description
Description
|
Spherical Roller Bearing with Adapter Sleeve: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. This bearing is supplied with an adapter sleeve. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 530mm
- Outside Diameter:
- 820mm
- Width:
- 195mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d1H | 530mm |
|---|---|
| d | 560mm |
| D | 820mm |
| B | 195mm |
| r min | 6mm |
| D1 | 741.5mm |
| ds | 12.5mm |
| ns | 23.5mm |
| Dm | 650mm |
| l | 282mm |
| c1 | 96mm |
| da max | 619mm |
| Da max | 797mm |
| db min | 581mm |
| Ba min | 18mm |
| ra max | 5mm |
| Dynamic load Cr | 5100000 N |
| Static load C0r | 11000000 N |
| e | 0.23 |
| Y1 | 2.95 |
| Y2 | 4.4 |
| Y0 | 2.89 |
| Fatigue load limit Cur | 740000 N |
| Limiting speed nG | 560 rpm |
| Reference speed nB | 450 rpm |
| Bearing weight | 339 kg |
| Adapter sleeve weight | 113 kg |
