SKU: 22316-E1-Ku-FAG

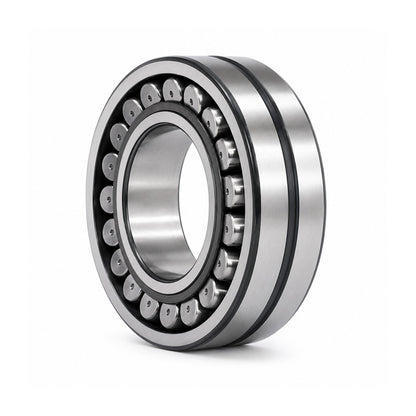

FAG 22316E1K X-life Spherical Roller Bearing with AHX2316 Withdrawal Sleeve 75x170x58mm
FAG 22316E1K X-life Spherical Roller Bearing with AHX2316 Withdrawal Sleeve 75x170x58mm
Regular price
€351,95
ex VAT
Regular price
Sale price
€351,95
ex VAT
In stock
Price Break
3+
€266,94
4+
€251,94
9+
€248,94
19+
€245,94
29+
€242,94
39+
€239,94
49+
€224,95
59+
€221,95
249+
€218,95
499+
€215,95
999+
€209,95
Quantity
Couldn't load pickup availability
Description
Description
SPHERWITHD_DESC
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 170mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1H | 75mm |
|---|---|
| d | 80mm |
| D | 170mm |
| B | 58mm |
| r min | 2.1mm |
| D1 | 145.1mm |
| d2 | 98.3mm |
| ds | 4.8mm |
| ns | 9.5mm |
| a | 4mm |
| b | 12mm |
| Thread d2G | M90X2 |
| l | 71mm |
| da min | 92mm |
| Da max | 158mm |
| ra max | 2.1mm |
| Dynamic load Cr | 495000 N |
| Static load C0r | 510000 N |
| e | 0.34 |
| Y1 | 1.99 |
| Y2 | 2.96 |
| Y0 | 1.94 |
| Fatigue load limit Cur | 45000 N |
| Limiting speed nG | 4300 rpm |
| Reference speed nB | 3400 rpm |
| Bearing weight | 6.05 kg |
| Withdrawal sleeve weight | 0.6 kg |
