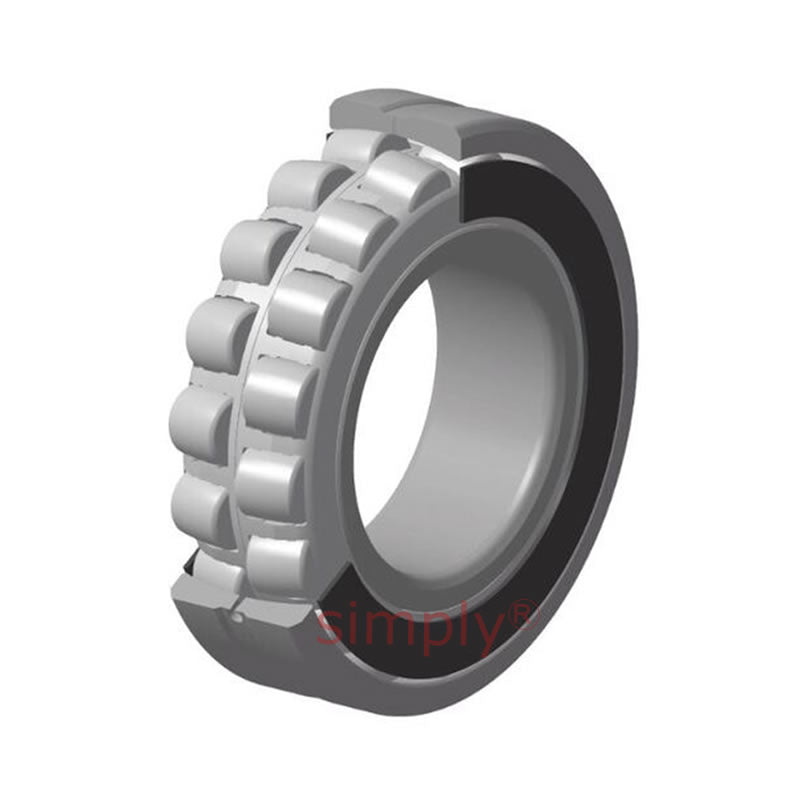

• SNR 22220EAW33ZZ Metal Shielded Spherical Roller Bearing with Cylindrical Bore 100x180x46mm Allow 1 - 2 Days
1 1

SKU: 22220EAW33ZZ-SNR

SNR 22220EAW33ZZ Metal Shielded Spherical Roller Bearing with Cylindrical Bore 100x180x46mm Allow 1 - 2 Days

SNR 22220EAW33ZZ Metal Shielded Spherical Roller Bearing with Cylindrical Bore 100x180x46mm Allow 1 - 2 Days
€384,95 ex VAT
€384,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €291,81
5+ €275,41
9+ €272,14
19+ €268,86
49+ €265,58
74+ €262,30
99+ €245,91
199+ €242,63
249+ €239,35
499+ €236,07
999+ €229,51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
VC58RI90ZT
Brand / Quality:
SNR - NTN - Premium Quality
Inside Diameter:
100mm
Outside Diameter:
180mm
Width:
46mm
Seals / Shields:
Metal Shielded
Item Type:
Metal Shielded Spherical Roller Bearing
Technical
--- Bearing dimensions
d 100mm
D 180mm
B 46mm
rs 2.1mm
D1 160.8mm
d2 118.2mm
b 11.2mm
k 5mm
--- Abutment dimensions
da min 112mm
Da Max 168mm
ra max 2mm
Dynamic load Cr 472kN
Static load Cor 495kN
Fatigue load Cu 52.6kn
--- Calculation factors
e 0.24
Y1 2.84
Y2 4.23
YO 2.78
--- Speeds and other information
Reference speed 3600rpm
Limiting speed 4600rpm
Internal clearance min 60μm
Internal clearance max 100μm
Initial grease addition mm<sup>3</sup> 53150
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 4.99kg
