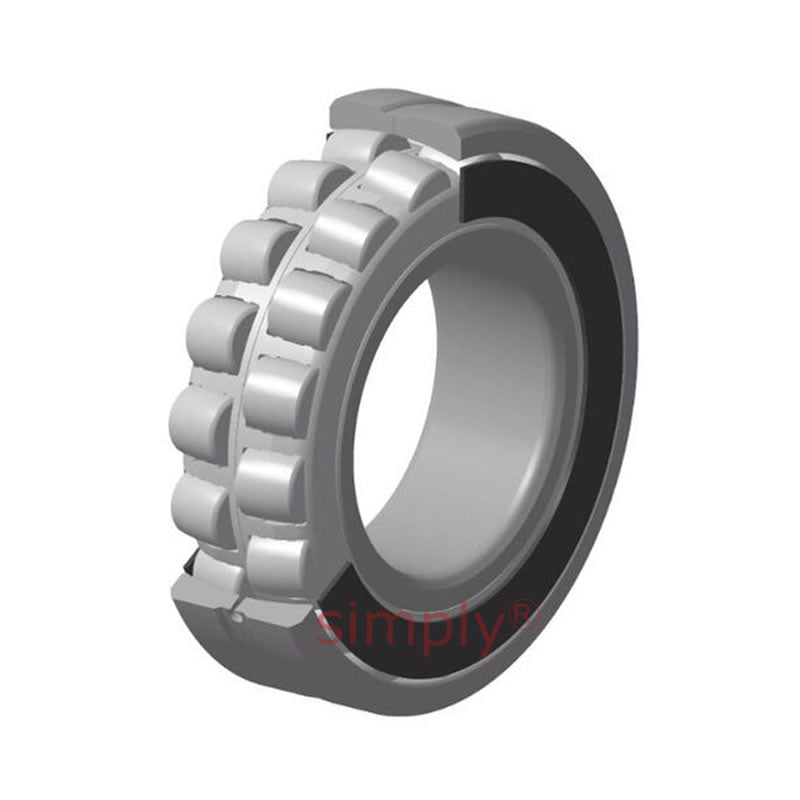

• SNR 22218EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 90x160x40mm Allow 1 - 2 Days
1 1

SKU: 22218EAW33ZZC3-SNR

SNR 22218EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 90x160x40mm Allow 1 - 2 Days

SNR 22218EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 90x160x40mm Allow 1 - 2 Days
€286,95 ex VAT
€286,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €217,89
5+ €205,64
9+ €203,20
19+ €200,75
49+ €198,30
74+ €195,85
99+ €183,61
199+ €181,16
249+ €178,71
499+ €176,27
999+ €171,37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
VC58RI90ZT
Brand / Quality:
SNR - NTN - Premium Quality
Inside Diameter:
90mm
Outside Diameter:
160mm
Width:
40mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Item Type:
Metal Shielded Spherical Roller Bearing
Technical
--- Bearing dimensions
d 90mm
D 160mm
B 40mm
rs 2mm
D1 143.2mm
d2 105.3mm
b 10.2mm
k 4.5mm
--- Abutment dimensions
da min 101mm
Da Max 149mm
ra max 2mm
Dynamic load Cr 384kN
Static load Cor 398kN
Fatigue load Cu 43.1kn
--- Calculation factors
e 0.23
Y1 2.9
Y2 4.31
YO 2.83
--- Speeds and other information
Reference speed 3900rpm
Limiting speed 5100rpm
Internal clearance min 100μm
Internal clearance max 135μm
Initial grease addition mm<sup>3</sup> 34677
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 3.39kg
