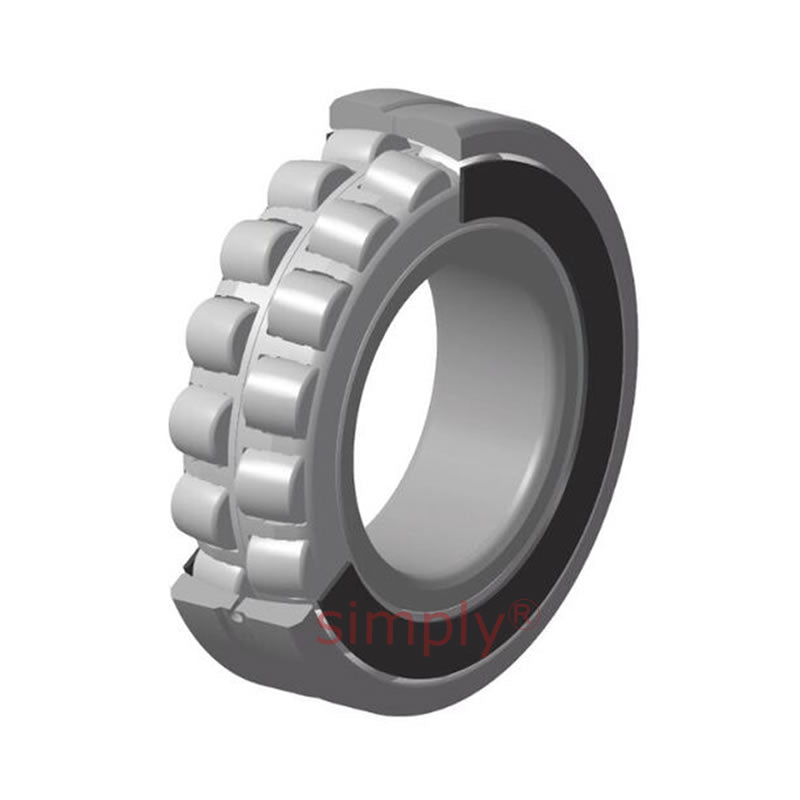

• SNR 22216EAKW33ZZ Metal Shielded Spherical Roller Bearing with Tapered Bore 80x140x33mm Allow 1 - 2 Days
1 1

SKU: 22216EAKW33ZZ-SNR

SNR 22216EAKW33ZZ Metal Shielded Spherical Roller Bearing with Tapered Bore 80x140x33mm Allow 1 - 2 Days

SNR 22216EAKW33ZZ Metal Shielded Spherical Roller Bearing with Tapered Bore 80x140x33mm Allow 1 - 2 Days
€228,95 ex VAT
€228,95 ex VAT
Sale Sold out

Equivalent to: 22216KZZ

In stock

Price Break
3+ €173,51
5+ €163,76
9+ €161,81
19+ €159,86
49+ €157,91
74+ €155,96
99+ €146,21
199+ €144,26
249+ €142,32
499+ €140,37
999+ €136,47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
VC58RI90ZT
Brand / Quality:
SNR - NTN - Premium Quality
Inside Diameter:
80mm
Outside Diameter:
140mm
Width:
33mm
Seals / Shields:
Metal Shielded
Item Type:
Metal Shielded Spherical Roller Bearing
Technical
--- Bearing dimensions
d 80mm
D 140mm
B 33mm
rs 2mm
D1 126.7mm
d2 94.9mm
b 7.87mm
k 3.5mm
--- Abutment dimensions
da min 91mm
Da Max 129mm
ra max 2mm
Dynamic load Cr 278kN
Static load Cor 287kN
Fatigue load Cu 33.4kn
--- Calculation factors
e 0.22
Y1 3.14
Y2 4.67
YO 3.07
--- Speeds and other information
Reference speed 4300rpm
Limiting speed 5800rpm
Internal clearance min 70μm
Internal clearance max 95μm
Initial grease addition mm<sup>3</sup> 21410
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 2.1kg
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H316+sleeve>H316</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA316+sleeve>HA316</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE316+sleeve>HE316</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AH316+sleeve>AH316</a>
