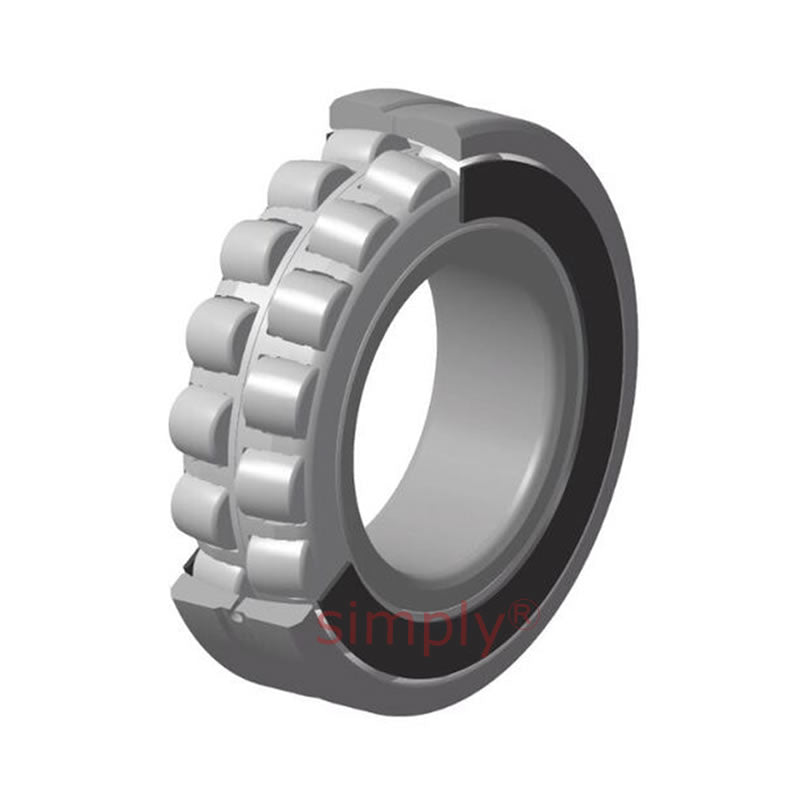

• SNR 22213EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 65x120x31mm Allow 1 - 2 Days
1 1

SKU: 22213EAW33ZZC3-SNR

SNR 22213EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 65x120x31mm Allow 1 - 2 Days

SNR 22213EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 65x120x31mm Allow 1 - 2 Days
€159,95 ex VAT
€159,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €121,40
5+ €114,58
9+ €113,22
19+ €111,85
49+ €110,49
74+ €109,13
99+ €102,31
199+ €100,94
249+ €99,58
499+ €98,21
999+ €95,49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
VC58RI90ZT
Brand / Quality:
SNR - NTN - Premium Quality
Inside Diameter:
65mm
Outside Diameter:
120mm
Width:
31mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Item Type:
Metal Shielded Spherical Roller Bearing
Technical
--- Bearing dimensions
d 65mm
D 120mm
B 31mm
rs 1.5mm
D1 107mm
d2 78.2mm
b 7.8mm
k 3.5mm
--- Abutment dimensions
da min 74mm
Da Max 111mm
ra max 1.5mm
Dynamic load Cr 226kN
Static load Cor 224kN
Fatigue load Cu 26kn
--- Calculation factors
e 0.24
Y1 2.79
Y2 4.15
YO 2.73
--- Speeds and other information
Reference speed 5300rpm
Limiting speed 6900rpm
Internal clearance min 65μm
Internal clearance max 90μm
Initial grease addition mm<sup>3</sup> 15317
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 1.57kg
