• SNR 22212EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 60x110x28mm Allow 1 - 2 Days
1 1

SKU: 22212EAW33ZZC3-SNR

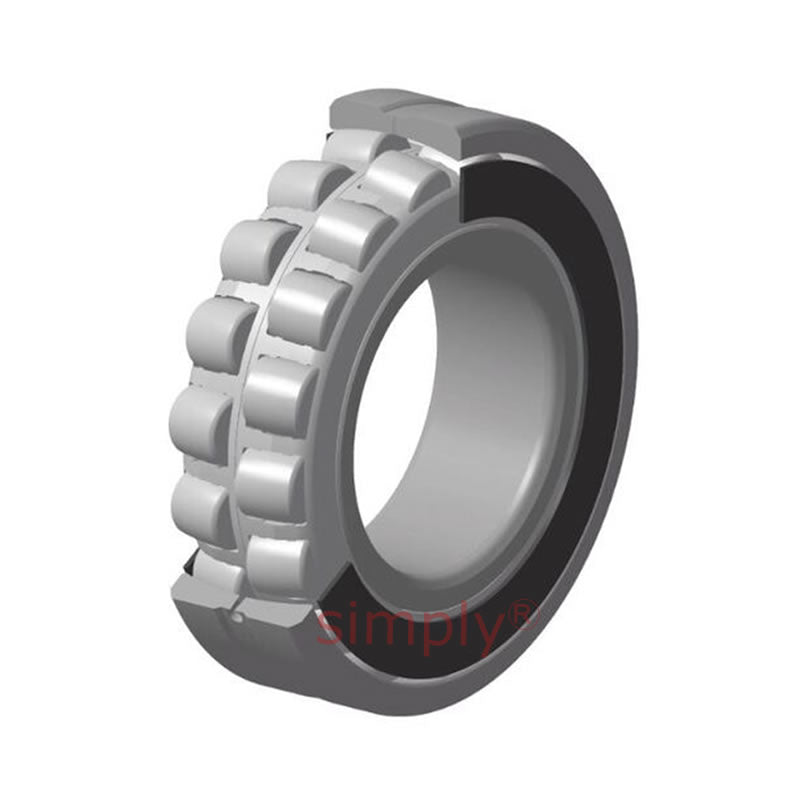

SNR 22212EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 60x110x28mm Allow 1 - 2 Days

SNR 22212EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 60x110x28mm Allow 1 - 2 Days
€152,95 ex VAT
€152,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €115,76
5+ €109,26
9+ €107,95
19+ €106,65
49+ €105,35
74+ €104,05
99+ €97,55
199+ €96,25
249+ €94,95
499+ €93,65
999+ €91,05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
VC58RI90ZT
Brand / Quality:
SNR - NTN - Premium Quality
Inside Diameter:
60mm
Outside Diameter:
110mm
Width:
28mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Item Type:
Metal Shielded Spherical Roller Bearing
Technical
--- Bearing dimensions
d 60mm
D 110mm
B 28mm
rs 1.5mm
D1 98.5mm
d2 71.9mm
b 6.9mm
k 3mm
--- Abutment dimensions
da min 69mm
Da Max 101mm
ra max 1.5mm
Dynamic load Cr 187kN
Static load Cor 181kN
Fatigue load Cu 22kn
--- Calculation factors
e 0.24
Y1 2.84
Y2 4.23
YO 2.78
--- Speeds and other information
Reference speed 5600rpm
Limiting speed 7500rpm
Internal clearance min 65μm
Internal clearance max 90μm
Initial grease addition mm<sup>3</sup> 12026
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 1.18kg
