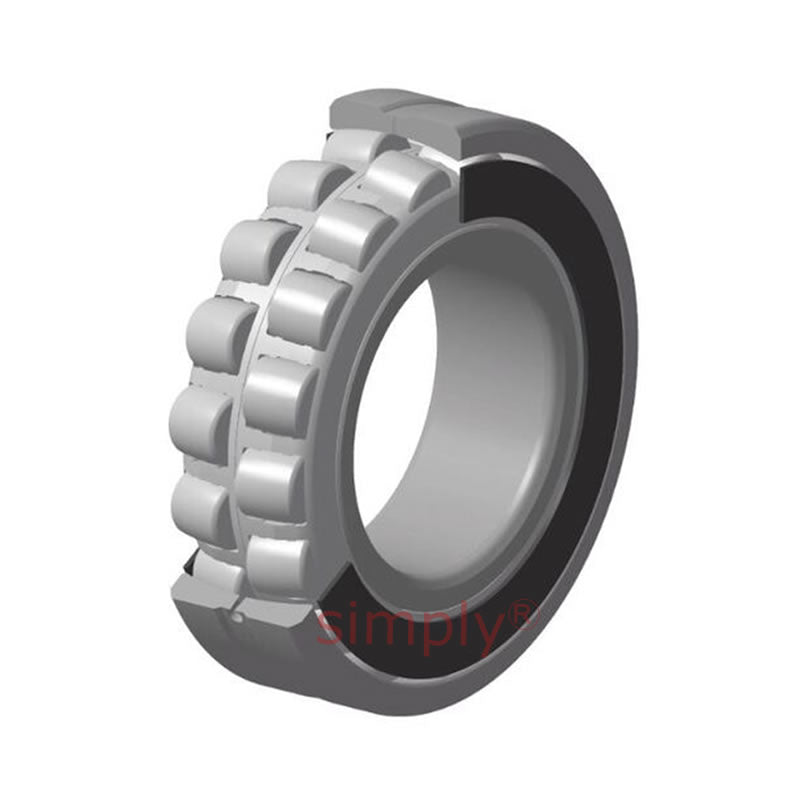

• SNR 22211EAKW33ZZC3 Metal Shielded Spherical Roller Bearing with Tapered Bore 55x100x25mm Allow 1 - 2 Days
1 1

SKU: 22211EAKW33ZZC3-SNR

SNR 22211EAKW33ZZC3 Metal Shielded Spherical Roller Bearing with Tapered Bore 55x100x25mm Allow 1 - 2 Days

SNR 22211EAKW33ZZC3 Metal Shielded Spherical Roller Bearing with Tapered Bore 55x100x25mm Allow 1 - 2 Days
€136,95 ex VAT
€136,95 ex VAT
Sale Sold out

Equivalent to: 22211KZZC3

In stock

Price Break
3+ €103,81
5+ €97,98
9+ €96,81
19+ €95,64
49+ €94,48
74+ €93,31
99+ €87,48
199+ €86,31
249+ €85,15
499+ €83,98
999+ €81,65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
VC58RI90ZT
Brand / Quality:
SNR - NTN - Premium Quality
Inside Diameter:
55mm
Outside Diameter:
100mm
Width:
25mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Item Type:
Metal Shielded Spherical Roller Bearing
Technical
--- Bearing dimensions
d 55mm
D 100mm
B 25mm
rs 1.5mm
D1 89.7mm
d2 66mm
b 6.4mm
k 3mm
--- Abutment dimensions
da min 64mm
Da Max 91mm
ra max 1.5mm
Dynamic load Cr 155kN
Static load Cor 148kN
Fatigue load Cu 17.9kn
--- Calculation factors
e 0.23
Y1 2.95
Y2 4.39
YO 2.89
--- Speeds and other information
Reference speed 6100rpm
Limiting speed 8200rpm
Internal clearance min 75μm
Internal clearance max 95μm
Initial grease addition mm<sup>3</sup> 8511
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 0.83kg
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H311+sleeve>H311</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS311+sleeve>HS311</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA311+sleeve>HA311</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE311B+sleeve>HE311B</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX311+sleeve>AHX311</a>
