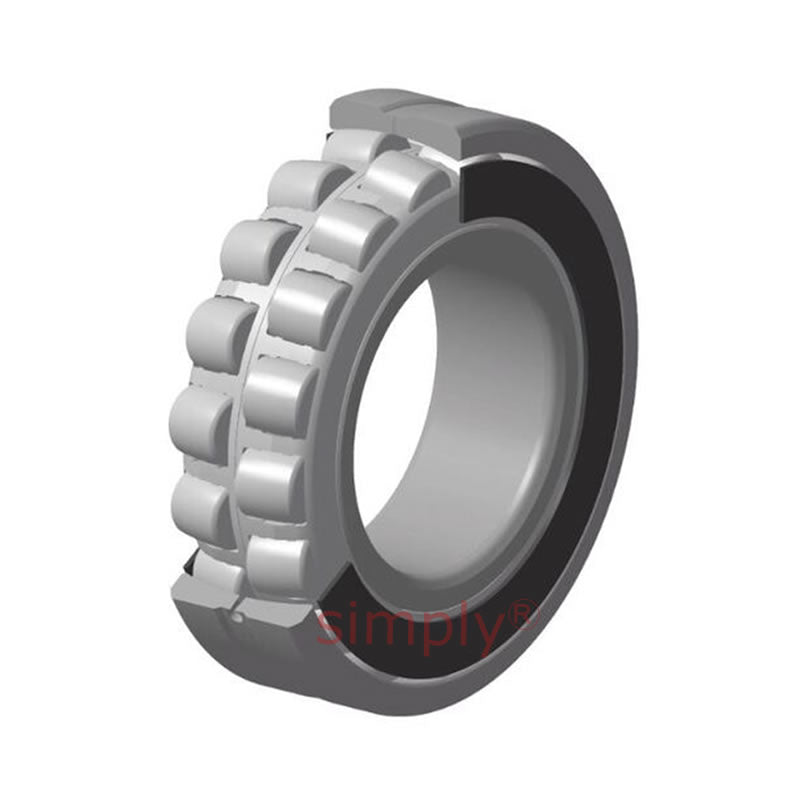

• SNR 22210EAKW33ZZC3 Metal Shielded Spherical Roller Bearing with Tapered Bore 50x90x23mm Allow 1 - 2 Days
1 1

SKU: 22210EAKW33ZZC3-SNR

SNR 22210EAKW33ZZC3 Metal Shielded Spherical Roller Bearing with Tapered Bore 50x90x23mm Allow 1 - 2 Days

SNR 22210EAKW33ZZC3 Metal Shielded Spherical Roller Bearing with Tapered Bore 50x90x23mm Allow 1 - 2 Days
€112,95 ex VAT
€112,95 ex VAT
Sale Sold out

Equivalent to: 22210KZZC3

In stock

Price Break
3+ €85,81
5+ €80,99
9+ €80,03
19+ €79,06
49+ €78,10
74+ €77,14
99+ €72,31
199+ €71,35
249+ €70,39
499+ €69,42
999+ €67,49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
VC58RI90ZT
Brand / Quality:
SNR - NTN - Premium Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Width:
23mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Item Type:
Metal Shielded Spherical Roller Bearing
Technical
--- Bearing dimensions
d 50mm
D 90mm
B 23mm
rs 1.1mm
D1 80.7mm
d2 59.5mm
b 5.8mm
k 2.5mm
--- Abutment dimensions
da min 57mm
Da Max 83mm
ra max 1mm
Dynamic load Cr 130kN
Static load Cor 124kN
Fatigue load Cu 14.5kn
--- Calculation factors
e 0.24
Y1 2.84
Y2 4.23
YO 2.78
--- Speeds and other information
Reference speed 6700rpm
Limiting speed 9100rpm
Internal clearance min 60μm
Internal clearance max 80μm
Initial grease addition mm<sup>3</sup> 6699
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 0.62kg
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H310+sleeve>H310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS310+sleeve>HS310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA310+sleeve>HA310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE310+sleeve>HE310</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX310+sleeve>AHX310</a>
