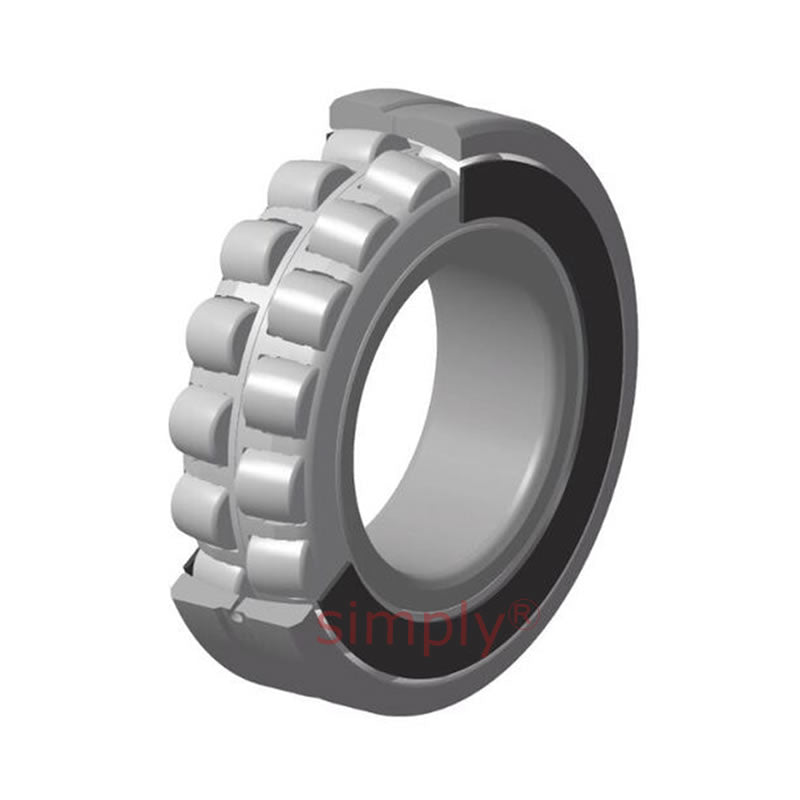

• SNR 22209EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 45x85x23mm Allow 1 - 2 Days
1 1

SKU: 22209EAW33ZZC3-SNR

SNR 22209EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 45x85x23mm Allow 1 - 2 Days

SNR 22209EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 45x85x23mm Allow 1 - 2 Days
€110,95 ex VAT
€110,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €84,13
5+ €79,41
9+ €78,46
19+ €77,51
49+ €76,57
74+ €75,62
99+ €70,90
199+ €69,95
249+ €69,01
499+ €68,06
999+ €66,17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
VC58RI90ZT
Brand / Quality:
SNR - NTN - Premium Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Width:
23mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Item Type:
Metal Shielded Spherical Roller Bearing
Technical
--- Bearing dimensions
d 45mm
D 85mm
B 23mm
rs 1.1mm
D1 75.6mm
d2 54.9mm
b 5.8mm
k 2.5mm
--- Abutment dimensions
da min 52mm
Da Max 78mm
ra max 1mm
Dynamic load Cr 121kN
Static load Cor 113kN
Fatigue load Cu 12.6kn
--- Calculation factors
e 0.26
Y1 2.64
Y2 3.94
YO 2.58
--- Speeds and other information
Reference speed 7400rpm
Limiting speed 9800rpm
Internal clearance min 55μm
Internal clearance max 75μm
Initial grease addition mm<sup>3</sup> 6194
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 0.59kg
