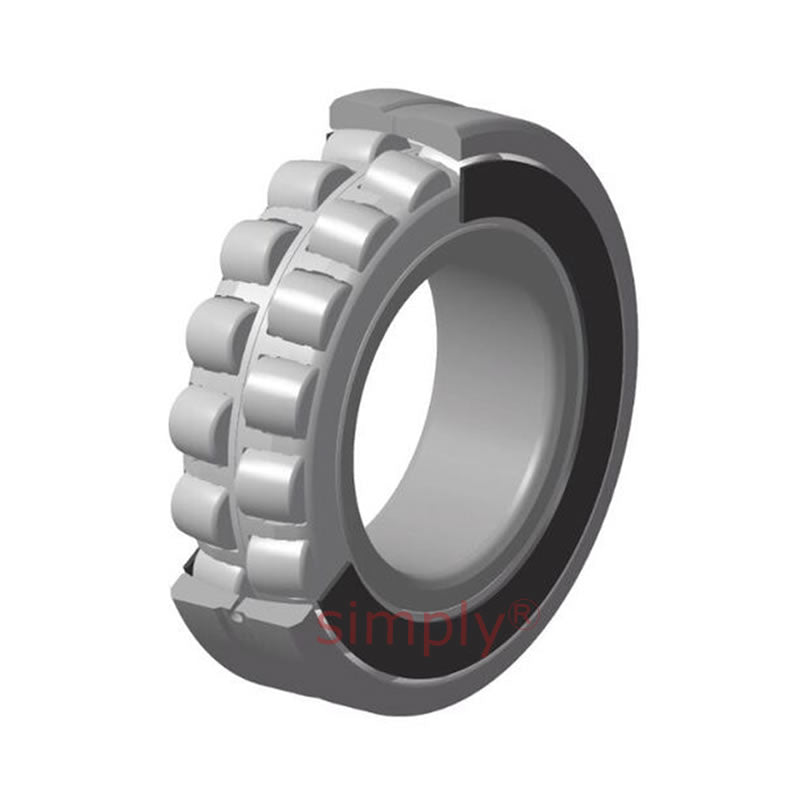

• SNR 22208EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 40x80x23mm Allow 1 - 2 Days
1 1

SKU: 22208EAW33ZZC3-SNR

SNR 22208EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 40x80x23mm Allow 1 - 2 Days

SNR 22208EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 40x80x23mm Allow 1 - 2 Days
€104,95 ex VAT
€104,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €79,31
5+ €74,85
9+ €73,96
19+ €73,07
49+ €72,18
74+ €71,29
99+ €66,83
199+ €65,94
249+ €65,05
499+ €64,16
999+ €62,38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
VC58RI90ZT
Brand / Quality:
SNR - NTN - Premium Quality
Inside Diameter:
40mm
Outside Diameter:
80mm
Width:
23mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Item Type:
Metal Shielded Spherical Roller Bearing
Technical
--- Bearing dimensions
d 40mm
D 80mm
B 23mm
rs 1.1mm
D1 70.8mm
d2 50.2mm
b 5.4mm
k 2.5mm
--- Abutment dimensions
da min 47mm
Da Max 73mm
ra max 1mm
Dynamic load Cr 116kN
Static load Cor 105kN
Fatigue load Cu 11kn
--- Calculation factors
e 0.27
Y1 2.47
Y2 3.68
YO 2.41
--- Speeds and other information
Reference speed 8200rpm
Limiting speed 11000rpm
Internal clearance min 45μm
Internal clearance max 60μm
Initial grease addition mm<sup>3</sup> 5486
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 0.54kg
