SKU: 21310-E1-K-C3u-FAG

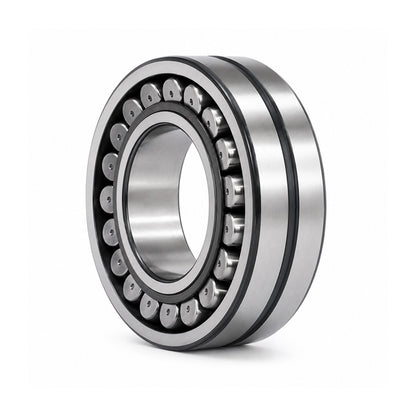

FAG 21310E1KC3 X-life Spherical Roller Bearing with AHX310 Withdrawal Sleeve 45x110x27mm
FAG 21310E1KC3 X-life Spherical Roller Bearing with AHX310 Withdrawal Sleeve 45x110x27mm
Regular price
€152,95
ex VAT
Regular price
Sale price
€152,95
ex VAT
In stock
Price Break
3+
€115,85
4+
€109,34
9+
€108,04
19+
€106,74
29+
€105,44
39+
€104,14
49+
€97,63
59+
€96,33
249+
€95,02
499+
€93,72
999+
€91,12
Quantity
Couldn't load pickup availability
Description
Description
SPHERWITHD_DESC
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

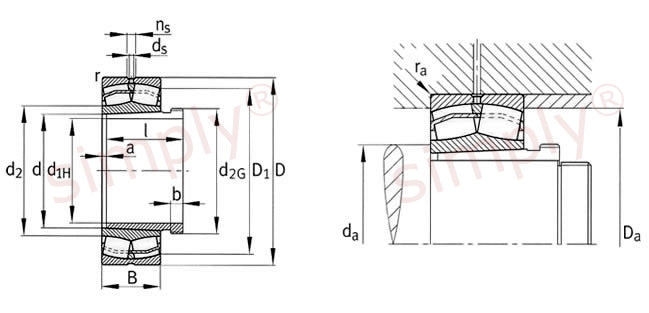

| d1H | 45mm |
|---|---|
| d | 50mm |
| D | 110mm |
| B | 27mm |
| r min | 2mm |
| D1 | 89.8mm |
| d2 | 67.3mm |
| ds | 3.2mm |
| ns | 4.8mm |
| a | 3mm |
| b | 7mm |
| Thread d2G | M55X2 |
| l | 35mm |
| da min | 61mm |
| Da max | 99mm |
| ra max | 2mm |
| Dynamic load Cr | 129000 N |
| Static load C0r | 130000 N |
| e | 0.23 |
| Y1 | 2.92 |
| Y2 | 4.35 |
| Y0 | 2.86 |
| Fatigue load limit Cur | 17300 N |
| Limiting speed nG | 8500 rpm |
| Reference speed nB | 5400 rpm |
| Bearing weight | 1.28 kg |
| Withdrawal sleeve weight | 0.138 kg |
