SKU: 20B-3-NO11-MB

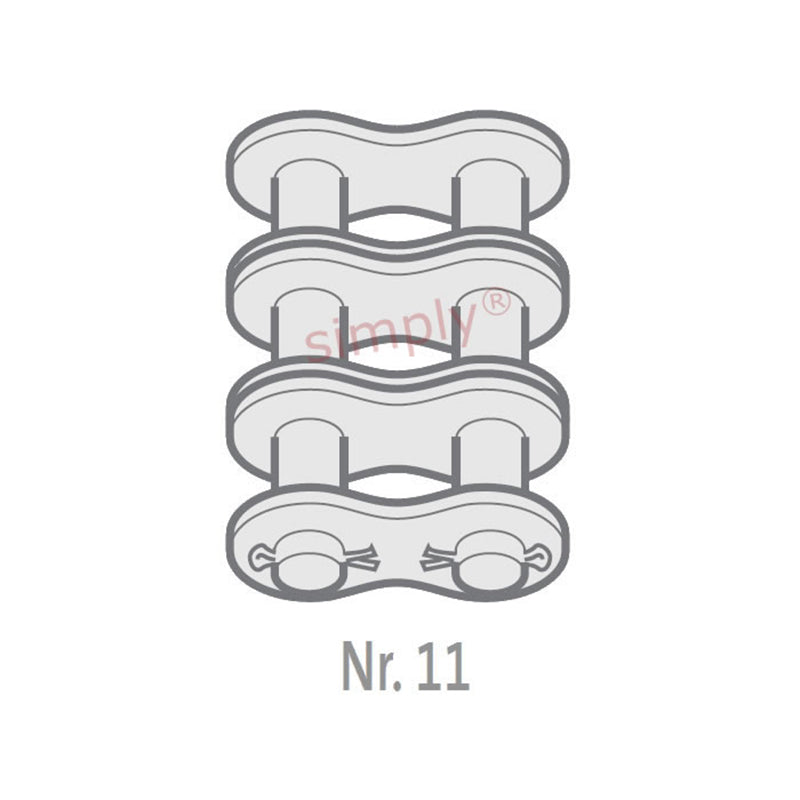

Branded 20B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Branded 20B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
€17,95
ex VAT
Regular price
Sale price
€17,95
ex VAT
Equivalent to: 20B-3-CL-COT 20B-3-CL
In stock
Price Break
2+
€13,44
5+
€12,68
10+
€12,53
29+
€12,38
49+
€12,23
75+
€12,08
100+
€11,32
200+
€11,17
250+
€11,02
500+
€10,87
1000+
€10,57
Quantity
Couldn't load pickup availability
Description
Description
Dunlop COT / No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical

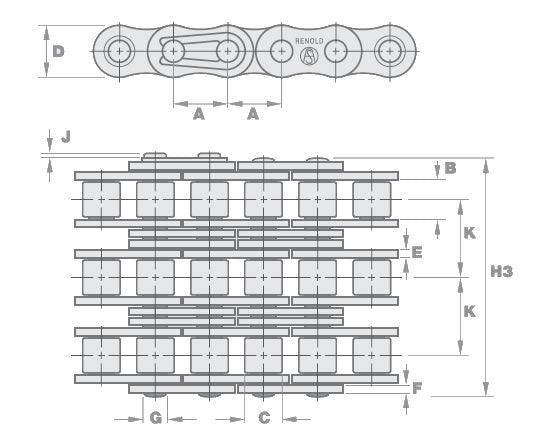

| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.3mm |
| Plate Width Inner max (E) | 4.5mm |
| Plate Width Outer max (F) | 3.5mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H3) | 108.9mm |
| Connecting Link Extension max (J) | 10.8mm |
| ISO606 Tensile Strength min | 275000 N |
| Weight | 0.19kg/m |
