SKU: 20317-MB-MB

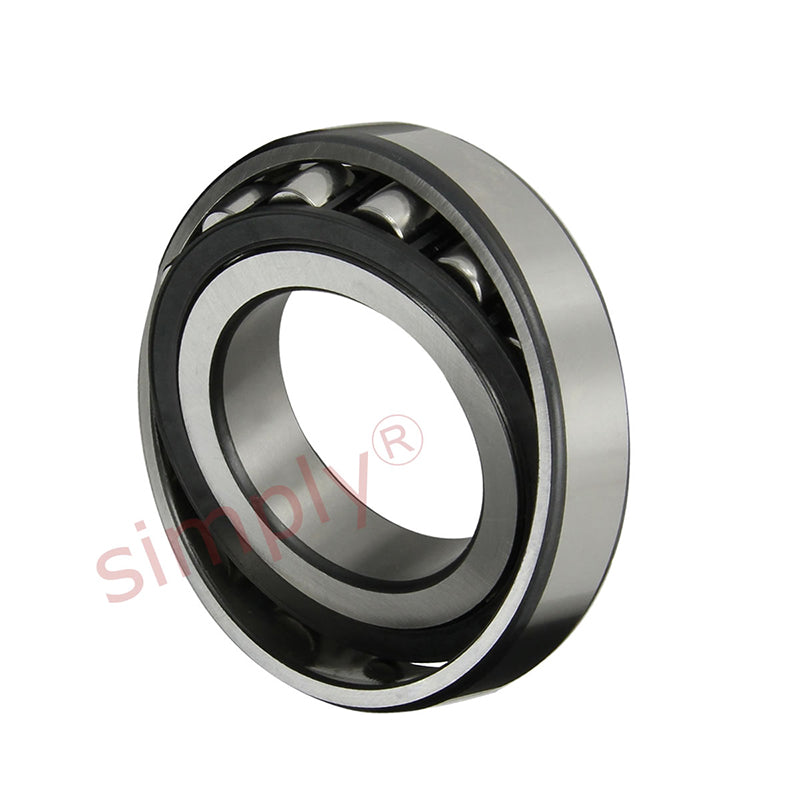

20317MB Barrel Roller Bearing with Cylindrical Bore 85x180x41mm - Allow 2-3 Days
20317MB Barrel Roller Bearing with Cylindrical Bore 85x180x41mm - Allow 2-3 Days
Regular price
€617,95
ex VAT
Regular price
Sale price
€617,95
ex VAT
In stock
Price Break
3+
€468,86
4+
€442,52
9+
€437,25
19+
€431,99
29+
€426,72
39+
€421,45
49+
€395,11
59+
€389,84
249+
€384,57
499+
€379,30
999+
€368,77
Quantity
Couldn't load pickup availability
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 180mm
- Width:
- 41mm
- Clearance:
- * Standard
Technical
Technical
| d | 85mm |
|---|---|
| D | 180mm |
| B | 41mm |
| r min | 3mm |
| D1 | 156.9mm |
| da min | 99mm |
| Da max | 166mm |
| ra max | 2.5mm |
| Dynamic Load Cr | 270000 N |
| Static Load C0r | 320000 N |
| Fatigue limit load Cur | 28500 N |
| Limiting speed nG | 1900 rpm |
| Weight | 5.25 kg |
