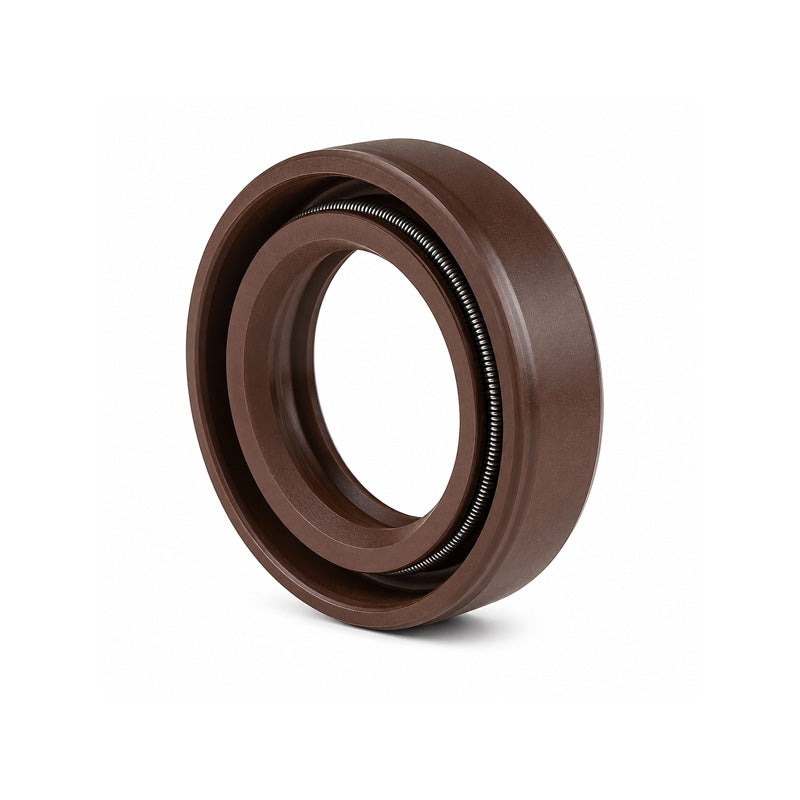

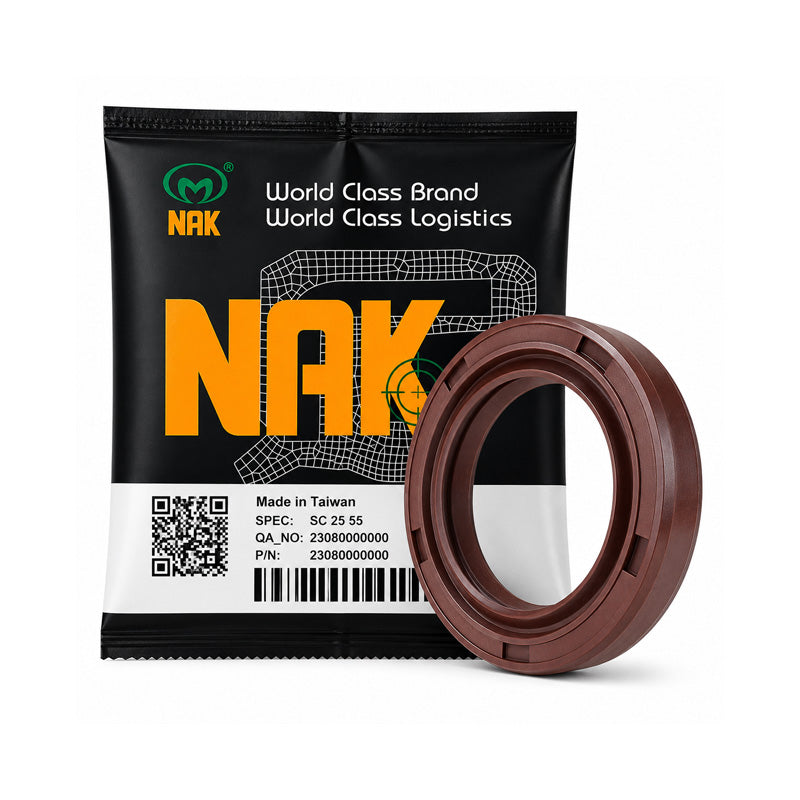

NAK 1x1.625x0.25 inch FKM Rubber Additional Lining Single Lip Rotary Shaft Oil Seal with Garter Spring SF - Allow 7-10 Days

NAK SF FKM Rubber Oils Seals: Oil seals are used in a variety of different applications in which a rotating shaft is lubricated by oil or grease. They are engineered to facilitate the smooth operation of your equipment, serving as a barrier to prevent the leakage of oils and greases while also keeping foreign substances from entering. SF type seals have a special design featuring an additional inner rubber lining for better protection of the inner case. They have a rubber-covered outside diameter with a single sealing lip on the inside diameter. The SF types feature a garter spring which allows some give to prevent a build-up of friction. (Seals under 5mm width may not always feature a spring.)
Benefits: High-temperature range, Chemical resistance, Higher wear resistance, Lower drag coefficient.

Brand / Quality:

NAK - High Quality

Inside Diameter:

25.4mm = 1 inch

Outside Diameter:

41.28mm = 1.625 (1-5/8) inch

Width:

6.35mm = 0.25 (1/4) inch

Seals / Shields:

FKM

Style:

SF

Colour:

Brown
