• NTN 1R15X20X13 Needle Roller Inner Race 15x20x13mm
1 1

SKU: 1R15X20X13-NTN

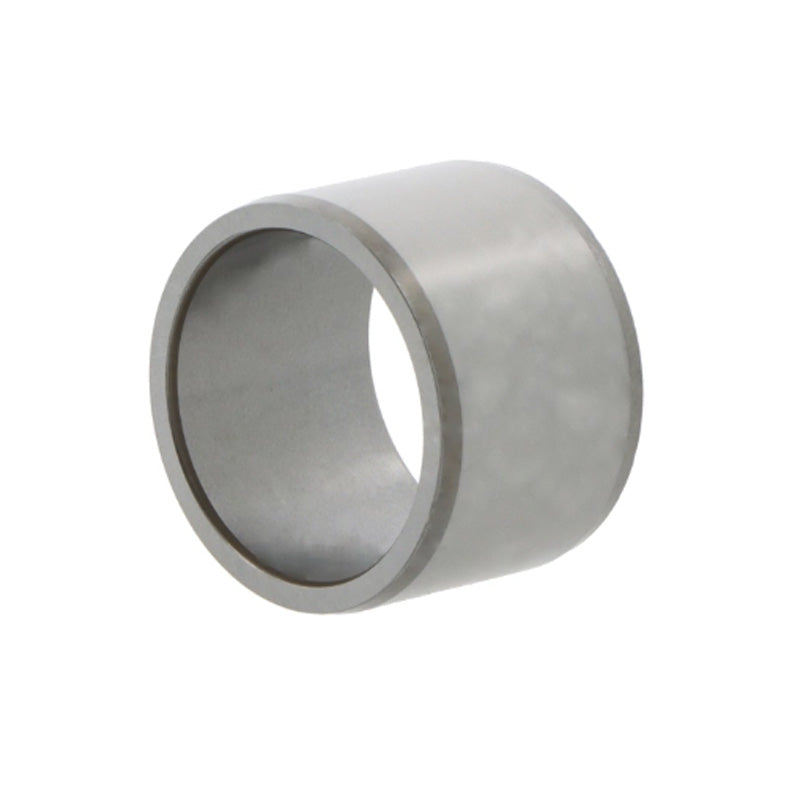

NTN 1R15X20X13 Needle Roller Inner Race 15x20x13mm

NTN 1R15X20X13 Needle Roller Inner Race 15x20x13mm
€7,95 ex VAT
€7,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €5,82
4+ €5,49
9+ €5,43
19+ €5,36
49+ €5,30
99+ €5,23
499+ €4,91
999+ €4,84
1999+ €4,77
2999+ €4,71
4999+ €4,58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JWXGKWRH8Y
Brand / Quality:
NTN - High Quality
Inside Diameter:
15mm
Outside Diameter:
20mm
Width:
13mm
Technical
d - Inside diameter 15mm
F - Outside diameter 20mm
B - Width 13mm
r - Minimum fillet radius 0.3mm
Lubrication hole on inner ring? No
t - Chamfer length 1.5mm
Precision class P0
da min - Minimum shoulder diameter 17mm
ras max - Maximum shaft & housing filler radius 0.3mm
