SKU: 170XL-050-85
170XL050 Major Brand Synchronous Toothed Belt 0.50 inch Wide 17 inch Length 85 Teeth
170XL050 Major Brand Synchronous Toothed Belt 0.50 inch Wide 17 inch Length 85 Teeth
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
In stock
Price Break
3+
€4,66
5+
€4,40
10+
€4,35
15+
€4,29
20+
€4,24
30+
€4,19
40+
€3,93
50+
€3,88
60+
€3,82
75+
€3,77
100+
€3,67
Quantity
Couldn't load pickup availability
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Belt Width Approx:
- 12.7mm = 1/2 inch
- Belt Depth Approx:
- 2.3mm
- Belt Length Approx:
- 431.8mm = 17 inch
- Number of Teeth:
- 85

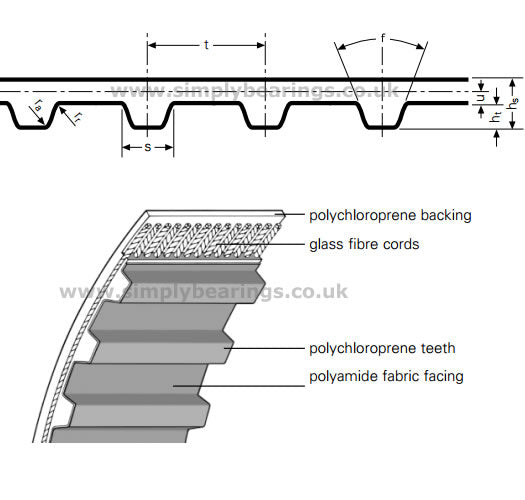

Technical
Technical
| Belt width | 0.50 inch = 12.7mm |
|---|---|
| Pitch length | 17 inch = 431.8mm |
| Number of teeth | 85 |
| Tooth pitch t | 0.2 inch |
| Flank angle f | 50 degrees |
| Tooth height h<sub>t</sub> | 0.05 inch |
| Pitch zone u | 0.01 inch |
