SKU: 16016C3-NTN

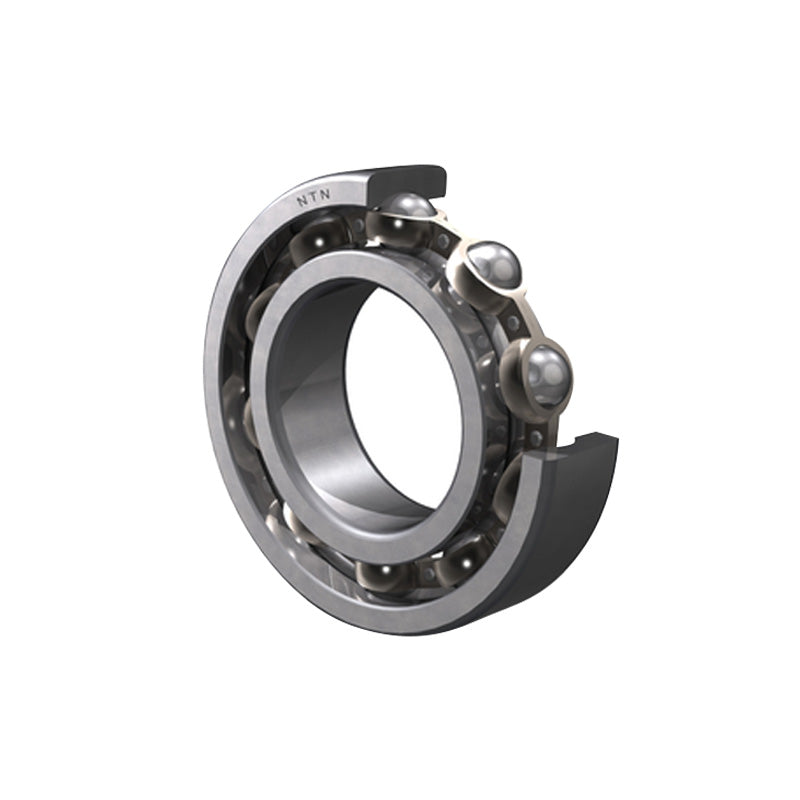

NTN 16016C3 Open Type Deep Groove Ball Bearing 80x125x14mm
NTN 16016C3 Open Type Deep Groove Ball Bearing 80x125x14mm
Regular price
€71,95
ex VAT
Regular price
Sale price
€71,95
ex VAT
Equivalent to: EL80C3 ELL80C3
In stock
Price Break
3+
€54,39
5+
€51,33
10+
€50,72
25+
€50,11
49+
€49,50
74+
€48,89
99+
€45,83
199+
€45,22
249+
€44,61
499+
€44,00
999+
€42,78
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 125mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 80mm |
| D | 125mm |
| B | 14mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 28.1 kN |
| C<sub>or</sub> | 25.1 kN |
| C<sub>u</sub> | 1.64 kN |
| f<sub>0</sub> | 16.4 kN |
| Grease | 5300 rpm |
| Oil | 6200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 84mm |
| D<sub>a</sub> Max. | 121mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.597 kg |
