SKU: 16005-2Z/C3-NKE

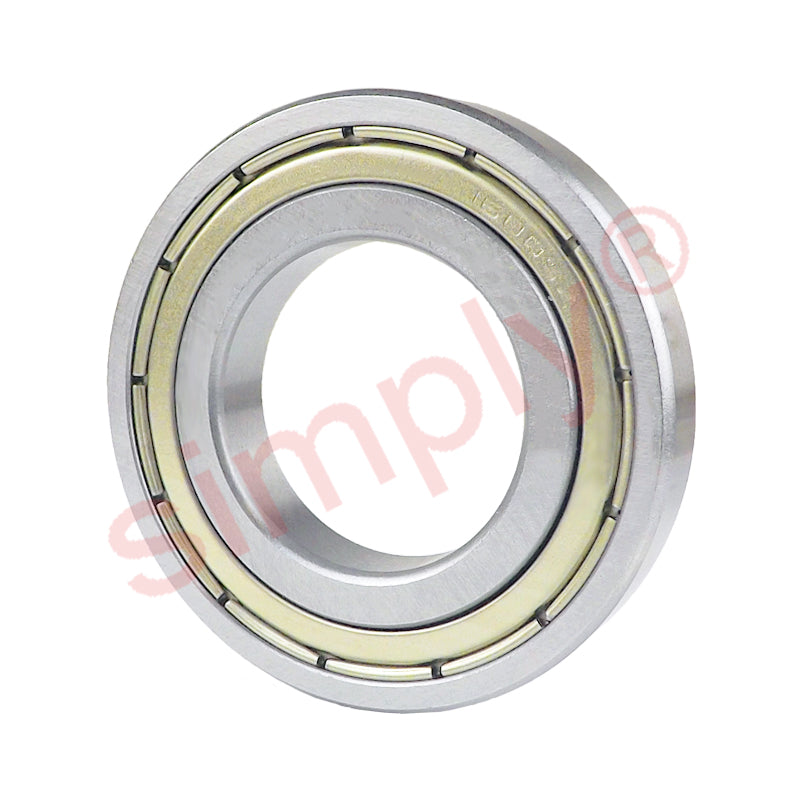

NKE 160052ZC3 Metal Shielded Deep Groove Ball Bearing 25x47x8mm
Equivalent to: 160052ZC3 16005.2ZC3 16005.2ZC3 16005ZZC3 160052ZRC3 16005ZZEC3 16005ZZC3 16005.2ZC3 16005KDDC3 16005DDC3 160052ZRC3 16005FFC3 ABMA 25BC00 BORGWARD N12125 CASE IH V31250 CBF 16005 DEERE TH110516 ESK 16005 FAG 16005 GMN 16005 IMPEXMETAL 16005 KOYO 16005 NACHI 16005 NSK 16005 NTN 16005 RHP 16005 RIV EL25 SAAB 173792 SKF 16005 SMT 16005 SNR 16005 STEYR 16005 VBF 7000105 ZVL ZKL 16005D 61800-2Z-NKE 160052ZC3 61800-2Z/C3-NKE Two Metal Shields
In stock
Price Break
Couldn't load pickup availability
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 8mm |
| Dynamic load C | 11.9 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.275 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 16000 rpm |
| Weight | 0.08 kg |
| d1 | 32mm |
| D2 | 42.2mm |
| r1r2 min | 0.6mm |
| da min | 28.2mm |
| Da max | 43.8mm |
| ra max | 0.6mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
