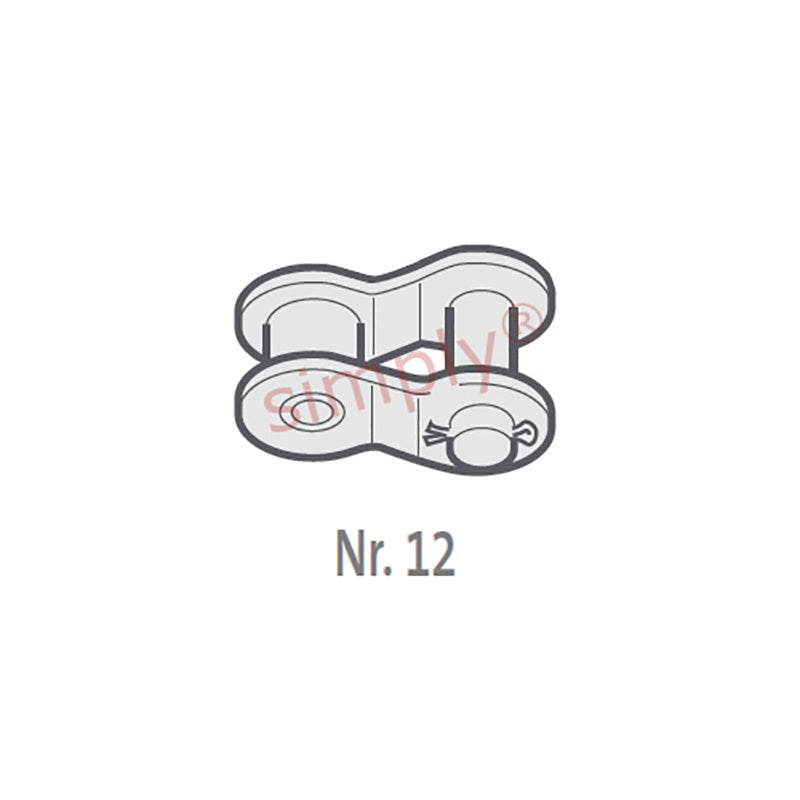

• Renold Blue Box 160-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 2 inch Pitch
1 1

SKU: 160-1-BB-NO12-RENOLD

Renold Blue Box 160-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 2 inch Pitch

Renold Blue Box 160-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 2 inch Pitch
€183,95 ex VAT
€183,95 ex VAT
Sale Sold out

In stock

Price Break
2+ €139,43
5+ €131,60
10+ €130,03
29+ €128,47
49+ €126,90
75+ €125,33
100+ €117,50
200+ €115,93
250+ €114,37
500+ €112,80
1000+ €109,67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ANSI_NO12S_DESC
Brand / Quality:
Renold - High Quality
Pitch:
50.8mm = 2 inch
Technical
Pitch (A) 2 inch
Pitch (A) 50.8mm
Inside Width min (B) 31.55mm
Roller Diameter max (C) 28.58mm
Plate Height max (D) 48.26mm
Plate Width Inner max (E) 6.35mm
Plate Width Outer max (F) 6.35mm
Pin Diameter max (G) 14.29mm
Pin Length max (H2) 63.1mm
Connecting Link Extension max (J) 6.5mm
ISO606 Tensile Strength min 223000 N
Weight 0.45kg/m
