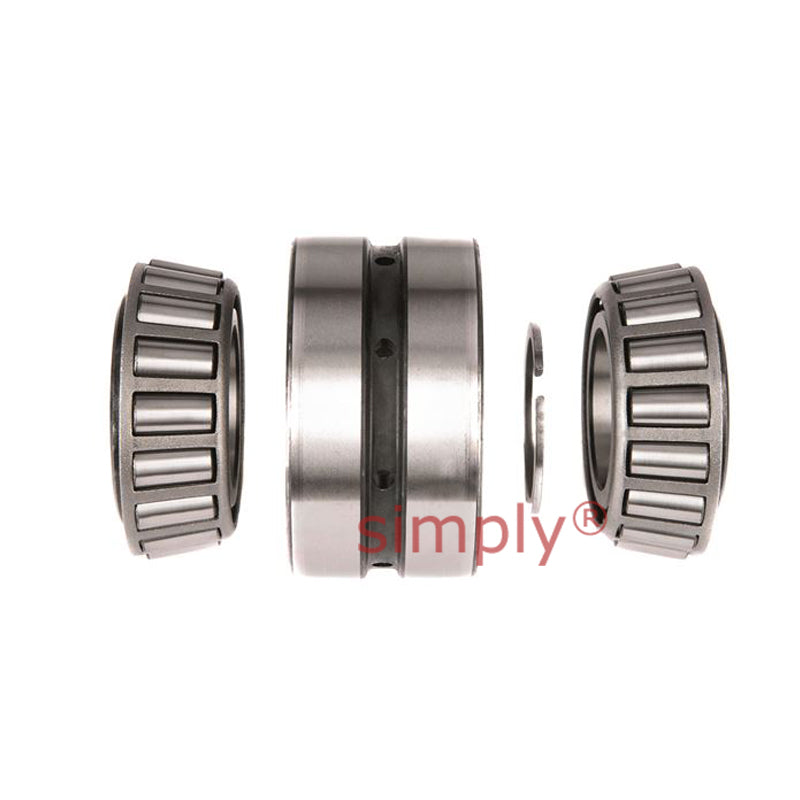

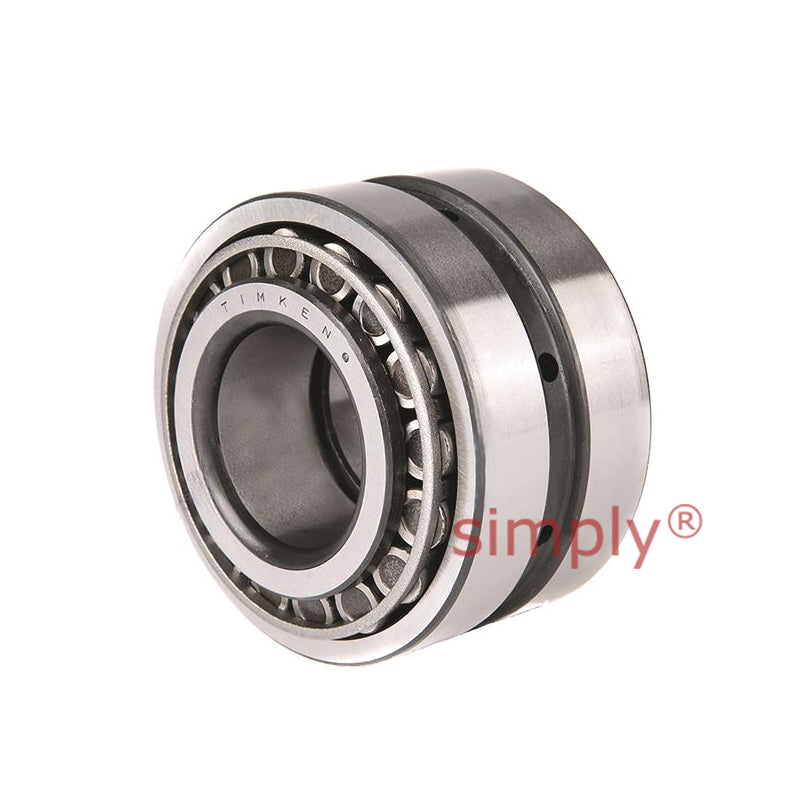

• Timken 14139/14276D/X2S14137 TDO Double Outer Race Taper Roller Bearing 1.377x2.717x1.8126x1.5 inch
  • Timken 14139/14276D/X2S14137 TDO Double Outer Race Taper Roller Bearing 1.377x2.717x1.8126x1.5 inch
1 2

SKU: 14139/14276D/X2S14137-TIM

Timken 14139/14276D/X2S14137 TDO Double Outer Race Taper Roller Bearing 1.377x2.717x1.8126x1.5 inch

Timken 14139/14276D/X2S14137 TDO Double Outer Race Taper Roller Bearing 1.377x2.717x1.8126x1.5 inch
€119,95 ex VAT
€119,95 ex VAT
Sale Sold out

Low stock

Price Break
10+ €90,88
20+ €85,77
30+ €84,75
40+ €83,73
50+ €82,71
75+ €81,69
100+ €76,58
200+ €75,56
250+ €74,54
500+ €73,52
1000+ €71,48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
TDO_DOR_HEAD
Brand / Quality:
Timken - High Quality
Inside Diameter:
34.99mm = 1.378 inch
Outside Diameter:
69.01mm = 2.717 inch
Width:
46.04mm = 1.813 (1-13/16) inch
Technical
d 34.975mm = 1.377 inch
D 69.012mm = 2.717 inch
T 46.04mm = 1.8126 inch
C 38.1mm = 1.5 inch
Dynamic (1) C1 88000N
Factors (5) e 0.38
Factors (5) Y1 1.77
Factors (5) Y2 2.63
Dynamic (2) C90 13100N
Dynamic (2) Ca90 8570N
Dynamic (2) C90(2) 22800N
Factors (5) K 1.53
Shaft max shaft fillet radius R(3) 1.3mm = 0.05 inch
Shaft backing shoulder diameter db 42.5mm = 1.67 inch
Housing max shaft fillet radius r(3) 0.8mm = 0.03 inch
Housing backing shoulder diameter Da 63mm = 2.48 inch
G1 18
G2 9.4
Cg 0.0668
