SKU: 1340-40-RHP

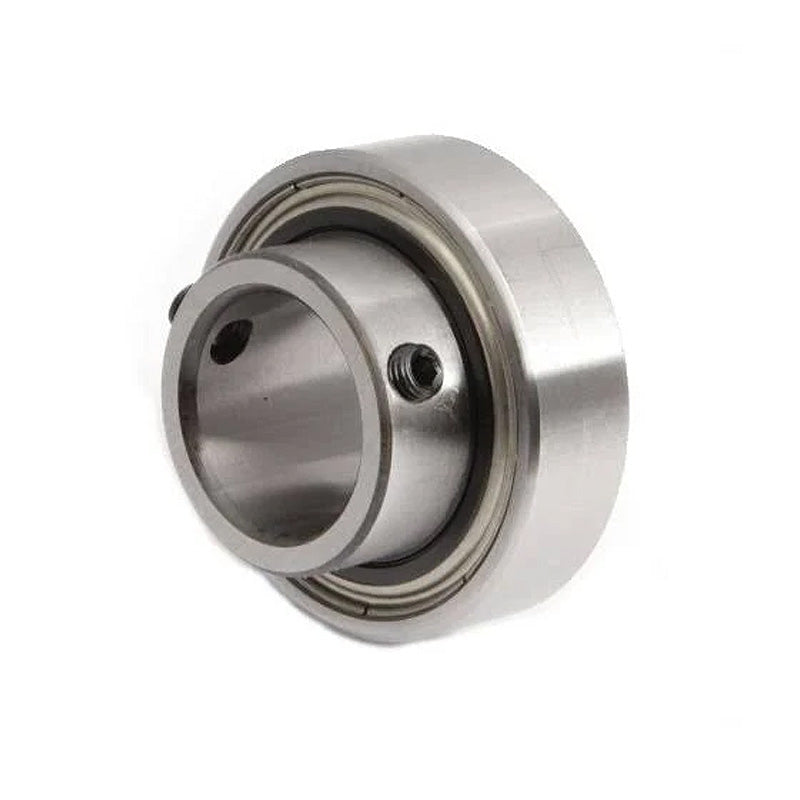

RHP 1340-40 Parallel Outer Flat Back Bearing Insert 40mm Bore 80mm Outside Diameter
RHP 1340-40 Parallel Outer Flat Back Bearing Insert 40mm Bore 80mm Outside Diameter
Out of stock
Description
Description
|
RHP 1300 Series: Flat back bearing insert with parallel outer race and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- 1340
Technical
Technical
| Bore | 40mm |
|---|---|
| D | 80mm |
| C | 18mm |
| B1 | 41.18mm |
| s1 | 11.05mm |
| d1 | 52.7mm |
| M | 7.95mm |
| r | 1mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 0.54 kg |
