SKU: 120-1-SD-NO26-RENOLD
Renold SD 120-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 1-1/2 inch Pitch
Renold SD 120-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 1-1/2 inch Pitch
Out of stock
Description
Description

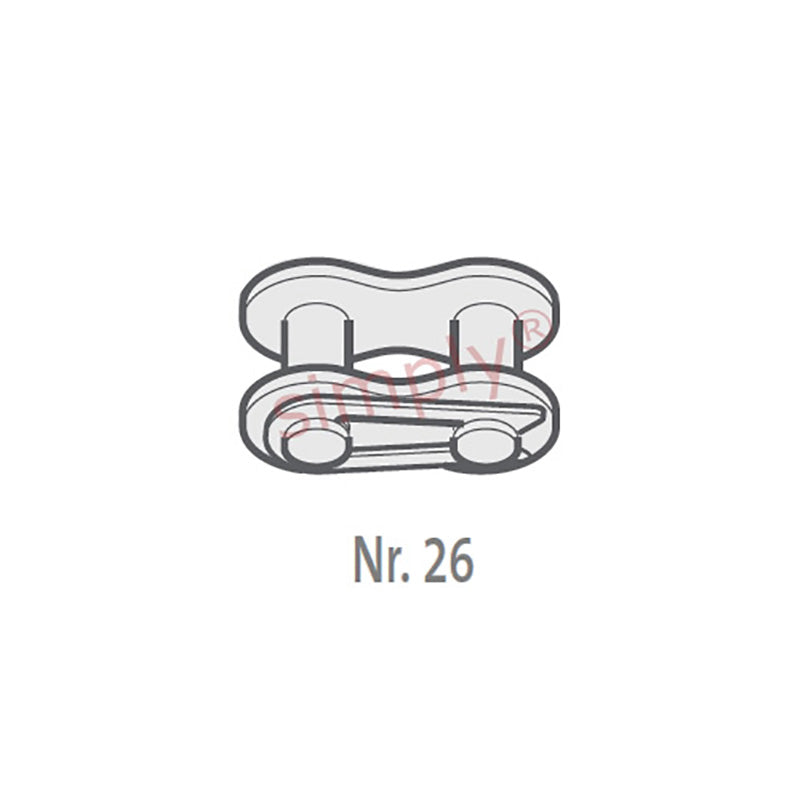

| Renold No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.1mm |
| Plate Width Inner max (E) | 4.7mm |
| Plate Width Outer max (F) | 4.7mm |
| Pin Diameter max (G) | 11.1mm |
| Pin Length max (H1) | 50.45mm |
| Connecting Link Extension max (J) | 2.95mm |
| ISO606 Tensile Strength min | 125000 N |
| Weight | 0.079kg/m |
