SKU: 1180-2.15/16-RHP

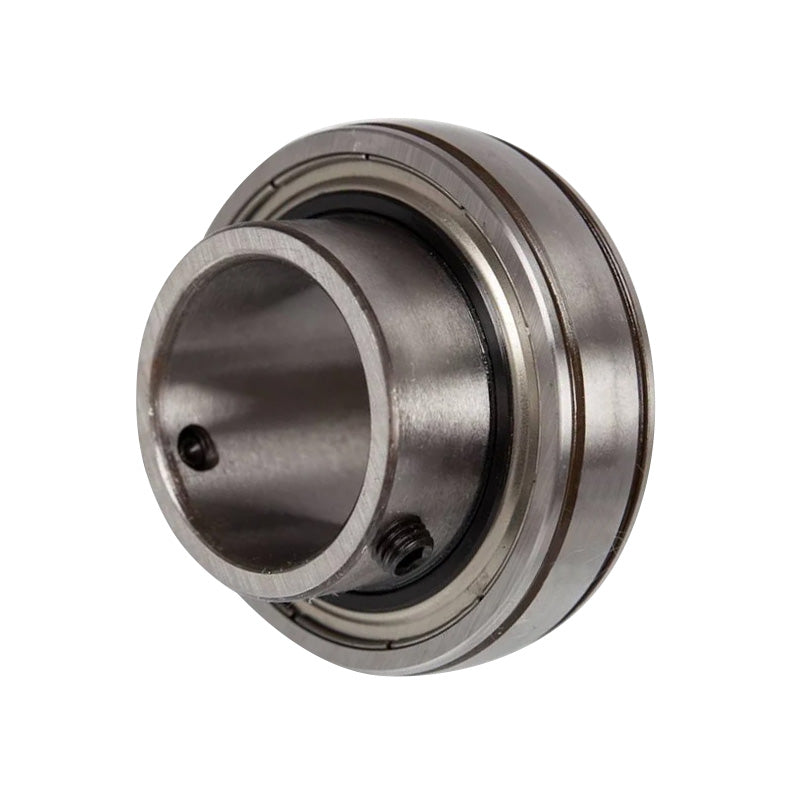

RHP 1180-2-15/16 Parallel Outer Full Width Bearing Insert 2-15/16 inch Bore 140mm Outside Diameter
RHP 1180-2-15/16 Parallel Outer Full Width Bearing Insert 2-15/16 inch Bore 140mm Outside Diameter
Out of stock
Description
Description
|
RHP 1100 Series: Full width bearing insert with parallel outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Outside Diameter:
- 140mm
- Style:
- 1180
Technical
Technical
| Bore | 2-15/16 inch |
|---|---|
| D | 5.5118 inch |
| C | 1.024 inch |
| B | 3.25 inch |
| s | 1.314 inch |
| d1 | 3.878 inch |
| M | 0.439 inch |
| r | 0.079 inch |
| Dynamic load Cr | 71500 N |
| Static load Cor | 54500 N |
| Rec max speed | 2150 rpm |
| Weight | 3.23 kg |
