SKU: 1175-70-RHP

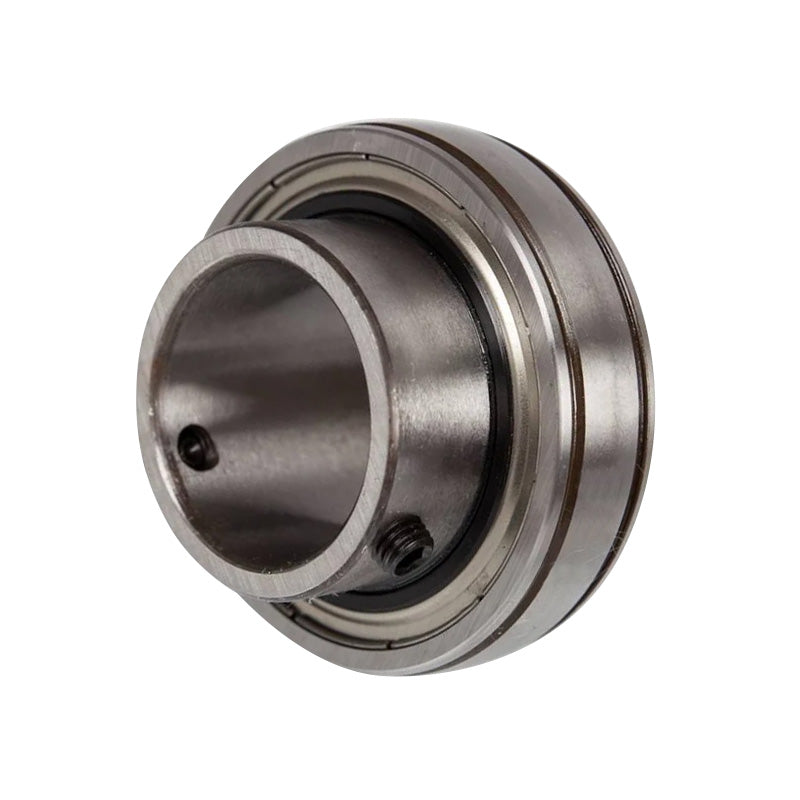

RHP 1175-70 Parallel Outer Full Width Bearing Insert 70mm Bore 130mm Outside Diameter
RHP 1175-70 Parallel Outer Full Width Bearing Insert 70mm Bore 130mm Outside Diameter
Out of stock
Description
Description
|
RHP 1100 Series: Full width bearing insert with parallel outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 130mm
- Style:
- 1175
Technical
Technical
| Bore | 70mm |
|---|---|
| D | 130mm |
| C | 25mm |
| B | 77.77mm |
| s | 33.37mm |
| d1 | 92mm |
| M | 12.75mm |
| r | 1.5mm |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 2.61 kg |
