SKU: 1155-1.7/8-RHP

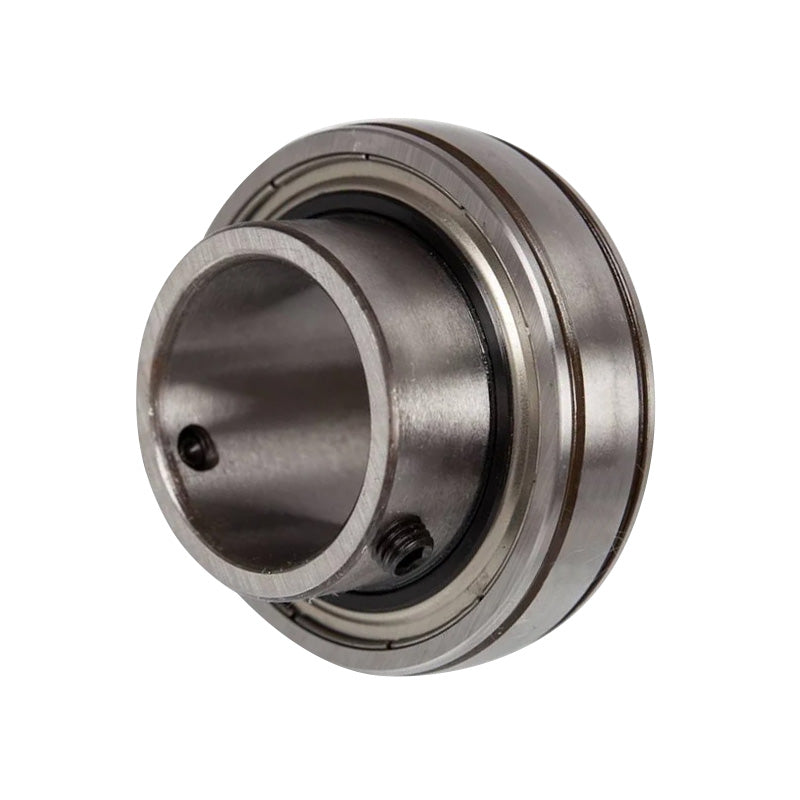

RHP 1155-1-7/8 Parallel Outer Full Width Bearing Insert 1-7/8 inch Bore 100mm Outside Diameter
RHP 1155-1-7/8 Parallel Outer Full Width Bearing Insert 1-7/8 inch Bore 100mm Outside Diameter
Out of stock
Description
Description
|
RHP 1100 Series: Full width bearing insert with parallel outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Outside Diameter:
- 100mm
- Style:
- 1155
Technical
Technical
| Bore | 1-7/8 inch |
|---|---|
| D | 3.937 inch |
| C | 0.827 inch |
| B | 2.187 inch |
| s | 0.877 inch |
| d1 | 2.709 inch |
| M | 0.376 inch |
| r | 0.059 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 1.12 kg |
