SKU: 112040/112085G-GAMET

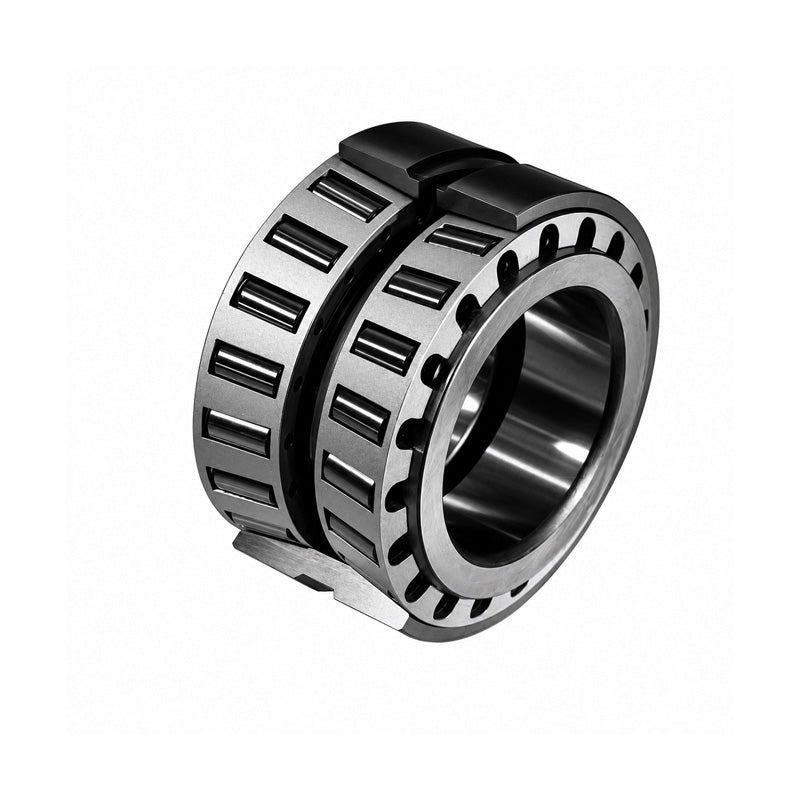

Gamet 112040/112085G Super Precision Double Row Tapered Roller Bearing Plain Cup Type 40x85x55mm - Allow 7-10 Days
Gamet 112040/112085G Super Precision Double Row Tapered Roller Bearing Plain Cup Type 40x85x55mm - Allow 7-10 Days
Out of stock
Description
Description
|
Super Precision Double Row Tapered Roller Bearing Plain Cup Type: Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies. Double row bearings offer nearly twice the capacity of the equivalent single row bearing, and are therefore used in more heavily loaded applications. The plain outer race enables this bearing to be used in a 'floating' position ro permit thermal expansion. It can replace a single row plain cup type tapered roller bearing when additional load capacity is required. Benefits: Suitable in heavily loaded applications, high quality bearing materials. Note: The bore of the rearcone (marked 'B' track) is 0.002 to 0.004mm larger than the 'A' track cone bore. This reduces the level of tight fit to facilitate adjustment of the bearing. |
- Brand / Quality:
- Gamet - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 85mm
- Width:
- 55mm
Technical
Technical
| d | 40.000mm |
|---|---|
| D | 85.000mm |
| T | 55.00mm |
| C | 48.66mm |
| F | 3.17mm |
| da | 55mm |
| L | 6mm |
| db | 81.00mm |
| r | 0.80mm |
| R | 2.00mm |
| Radial static stiffness | 88 daN/µ |
| Axial static stiffness | 7 daN/µ |
| Radial basic rating | 2190 daN |
| Axial basic rating | 600 daN |
| Max speed | 8200 rpm |
| Cone | 112040 |
| Cup | 112085G |
