SKU: 10B-1-SD-NO30-RENOLD
Renold SD 10B-1-NO30 BS Simplex Chain Double Cranked Link 5/8 inch Pitch
Renold SD 10B-1-NO30 BS Simplex Chain Double Cranked Link 5/8 inch Pitch
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
In stock
Price Break
2+
€4,69
5+
€4,42
10+
€4,37
29+
€4,32
49+
€4,26
75+
€4,21
100+
€3,95
200+
€3,90
250+
€3,84
500+
€3,79
1000+
€3,69
Quantity
Couldn't load pickup availability
Description
Description

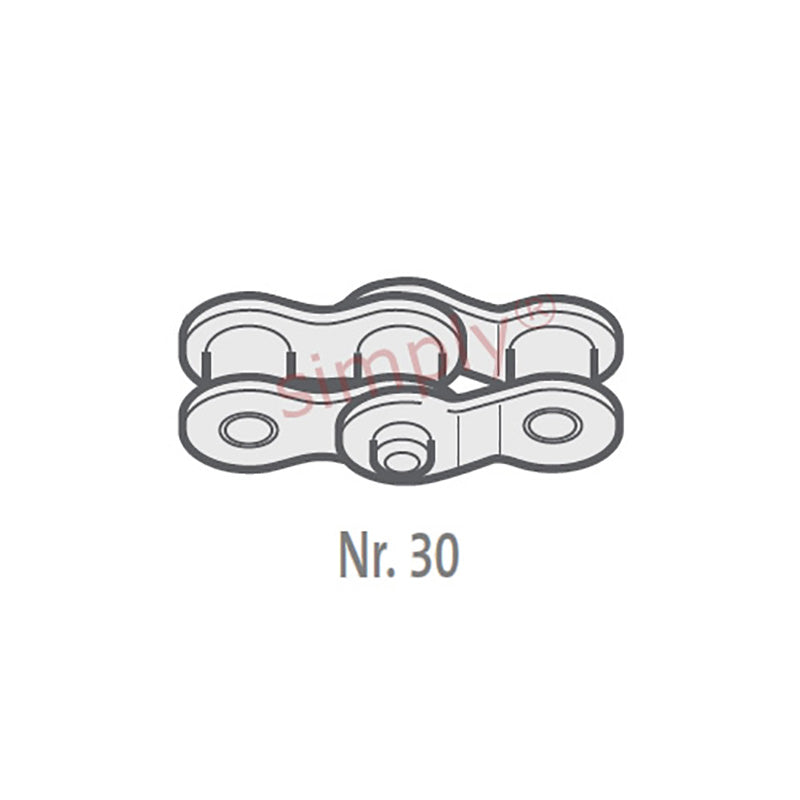

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical

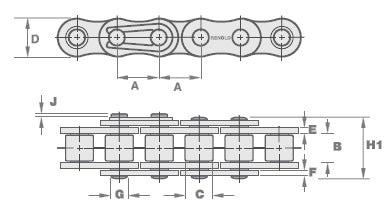

| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.7mm |
| Plate Width Inner max (E) | 1.65mm |
| Plate Width Outer max (F) | 1.65mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 19.6mm |
| Connecting Link Extension max (J) | 1.4mm |
| ISO606 Tensile Strength min | 22200 N |
| Weight | 0.07kg/m |
