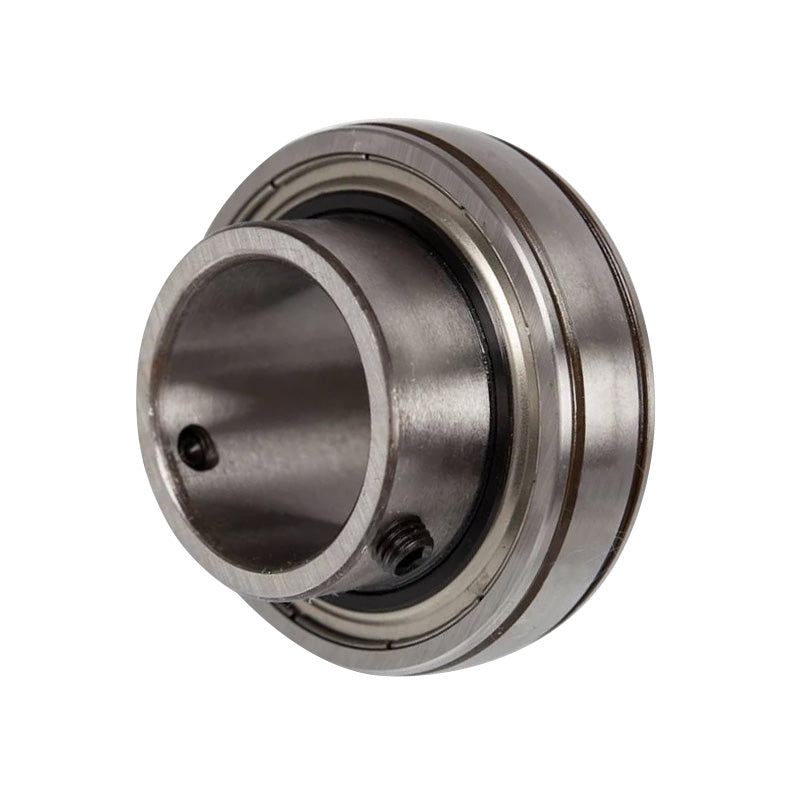

• RHP 1080-2-15/16G Spherical Outer Full Width Bearing Insert 2-15/16 inch Bore 140mm Outside Diameter
1 1

SKU: 1080-2.15/16G-RHP

RHP 1080-2-15/16G Spherical Outer Full Width Bearing Insert 2-15/16 inch Bore 140mm Outside Diameter

RHP 1080-2-15/16G Spherical Outer Full Width Bearing Insert 2-15/16 inch Bore 140mm Outside Diameter
€226,95 ex VAT
€226,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €172,23
20+ €162,55
30+ €160,62
40+ €158,68
50+ €156,75
75+ €154,81
100+ €145,14
200+ €143,20
250+ €141,27
500+ €139,33
1000+ €135,46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
74.61mm = 2.937 (2-15/16) inch
Outside Diameter:
140mm
Style:
1080
Technical
Bore 2-15/16 inch
D 5.5118 inch
C 1.024 inch
B 3.25 inch
s 1.314 inch
d1 3.878 inch
M 0.439 inch
r 0.079 inch
Dynamic load Cr 71500 N
Static load Cor 54500 N
Rec max speed 2150 rpm
Weight 3.23 kg
