• RHP 1050-1-15/16G Spherical Outer Full Width Bearing Insert 1-15/16 inch Bore 90mm Outside Diameter
1 1

SKU: 1050-1.15/16G-RHP

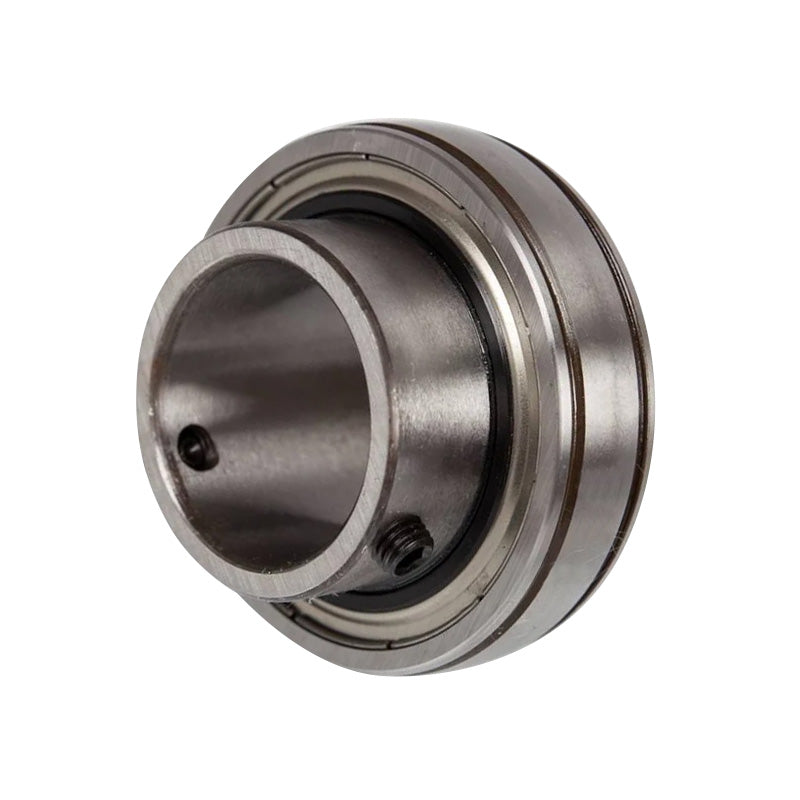

RHP 1050-1-15/16G Spherical Outer Full Width Bearing Insert 1-15/16 inch Bore 90mm Outside Diameter

RHP 1050-1-15/16G Spherical Outer Full Width Bearing Insert 1-15/16 inch Bore 90mm Outside Diameter
€62,95 ex VAT
€62,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €47,18
20+ €44,53
30+ €44,00
40+ €43,47
50+ €42,94
75+ €42,41
100+ €39,76
200+ €39,23
250+ €38,70
500+ €38,17
1000+ €37,11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Outside Diameter:
90mm
Style:
1050
Technical
Bore 1-15/16 inch
D 3.5433 inch
C 0.787 inch
B 2.031 inch
s 0.752 inch
d1 2.449 inch
M 0.352 inch
r 0.039 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 0.91 kg
