SKU: 1045-1.5/8DECGFS-RHP

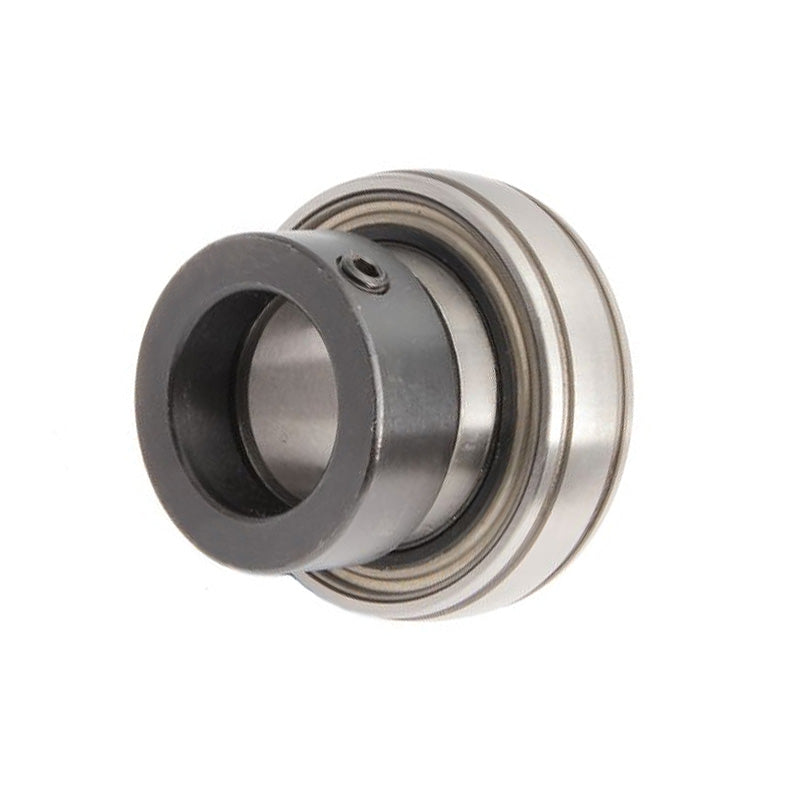

RHP 1045-1-5/8DECGFS Flinger Seal Eccentric Collar Bearing Insert 1-5/8 inch Bore 85mm Outside Diameter
RHP 1045-1-5/8DECGFS Flinger Seal Eccentric Collar Bearing Insert 1-5/8 inch Bore 85mm Outside Diameter
Out of stock
Description
Description
|
RHP T1000DECGFS Series Triple Sealed Bearing Insert: This insert type is a full width bearing with a spherical outer diameter and is fitted with a flinger seal assembly on both sides of the bearing to prevent moisture and dust / particle ingress and help move debris away from the actual sealing arrangement, they are particularly suited to agricultural applications where harsh weather conditions and environments need to be tolerated for longer periods between maintenance. They have the benefit of being re-lubricatable after installation. There is an eccentric collar and grub screw to allow easy installation and placement prior of the bearing prior to tightened against to the shaft. Benefits: Cost effective solution, re-lubricatable, eccentric collar fixing, Triple sealed |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 85mm
- Style:
- 1045
Technical
Technical
| Bore | 1-5/8 inch |
|---|---|
| D | 3.3465 inch |
| C | 0.748 inch |
| B3 | 2.218 inch |
| s2 | 0.845 inch |
| d2 | 2.5 inch |
| r | 0.039 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 1.08 kg |
