SKU: 1030-25KG-RHP
RHP 1030-25KG Spherical Outer Taper Bore Bearing Insert and H306 Sleeve with 25mm Shaft 62mm Outside Diameter
RHP 1030-25KG Spherical Outer Taper Bore Bearing Insert and H306 Sleeve with 25mm Shaft 62mm Outside Diameter
Regular price
€46,95
ex VAT
Regular price
Sale price
€46,95
ex VAT
In stock
Price Break
10+
€34,98
20+
€33,02
30+
€32,62
40+
€32,23
50+
€31,84
75+
€31,44
100+
€29,48
200+
€29,08
250+
€28,69
500+
€28,30
1000+
€27,51
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP 1000 KG Series: Taper bore bearing insert with spherical outer race and taper sleeve, lock washer and lock nut to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. The taper sleeve supplied makes the job of fitting simple as the bearing can be positioned easily prior to locking to the shaft. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Style:
- 1030

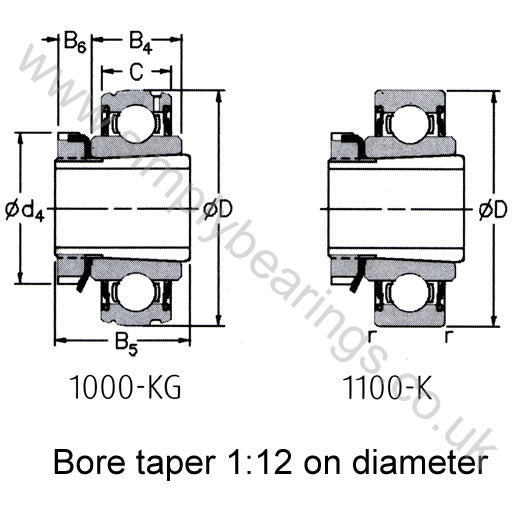

Technical
Technical
| Bore | 25mm |
|---|---|
| D | 62mm |
| C | 16mm |
| B4 | 20mm |
| B5 | 31mm |
| B6 | 8mm |
| d | 30mm |
| d1 | 40mm |
| d4 | 45mm |
| r | 1mm |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 0.3 kg |
| Supplied sleeve | H306 |
