SKU: 1017-15G-RHP

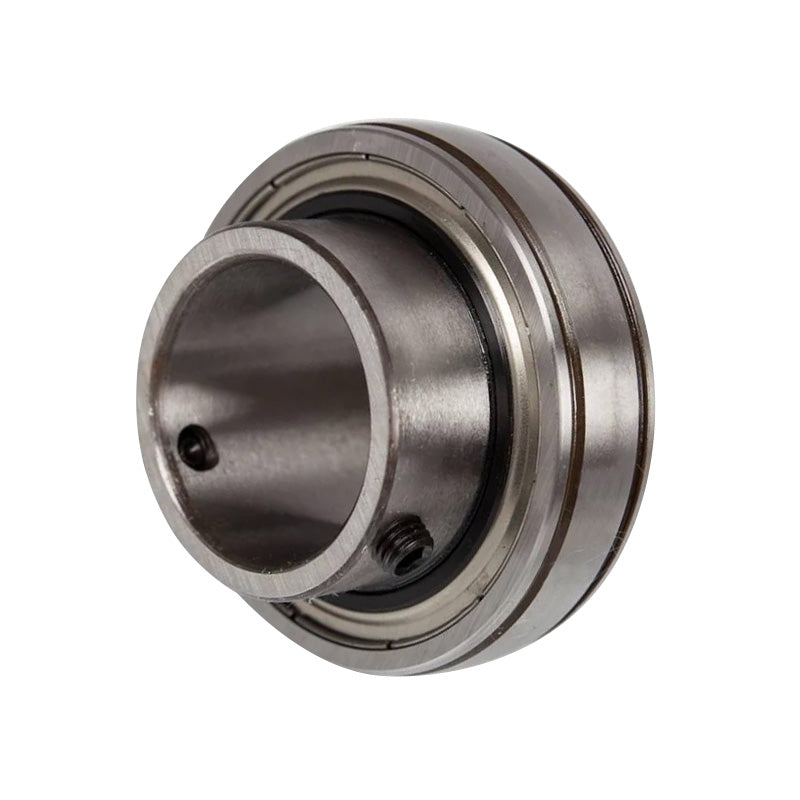

RHP 1017-15G Spherical Outer Full Width Bearing Insert 15mm Bore 40mm Outside Diameter

Name: RHP 1017-15G Spherical Outer Full Width Bearing Insert 15mm Bore 40mm Outside Diameter
Brand: RHP
SKU: 1017-15G-RHP
Price: 23.95 EUR
Availability: InStock

€23,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €17,89

20+ €16,88

30+ €16,68

40+ €16,48

50+ €16,28

75+ €16,08

100+ €15,08

200+ €14,87

250+ €14,67

500+ €14,47

1000+ €14,07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Brand / Quality:: RHP - High Quality
Inside Diameter:: 15mm
Outside Diameter:: 40mm
Style:: 1017

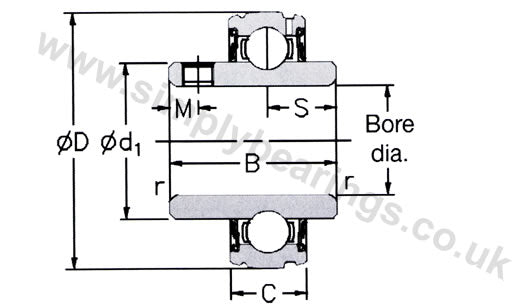

Technical

Bore	15mm
D	40mm
C	12mm
B	27.38mm
s	11.55mm
d1	24.21mm
M	5.35mm
r	0.6mm
Dynamic load Cr	9550 N
Static load Cor	4800 N
Rec max speed	7000 rpm
Weight	0.09 kg
